Description:
The Fluke 2AC VoltAlert is100% brand new.
Voltbeat technology and continuous self-test — so you always know it’s working

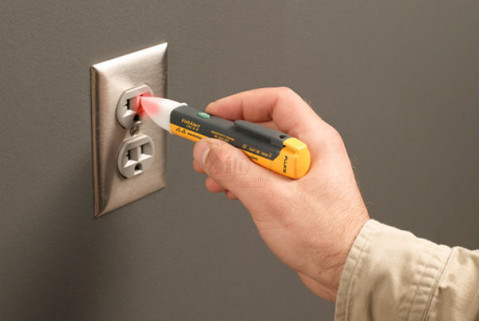

Upon detection, tip glows RED.
CAT IV 1000 V for added protection
Expanded range:200 V to 1000 V

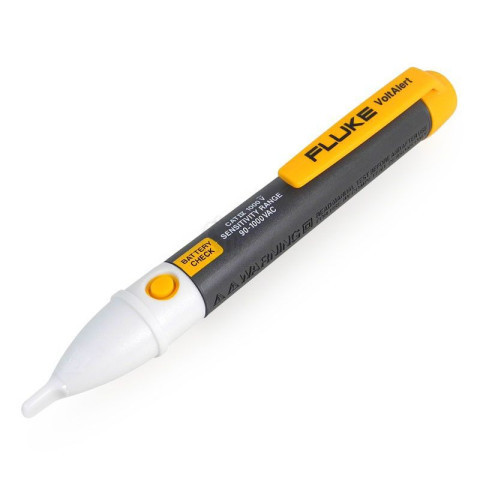

Model:2AC
Sensitivity(range):200-1000V
Gross Weight:68.2g(NOT INCLUDE BATTERY)
FEATURE
*Voltage detection from 200 to 1000 V AC, suitable for a wide range of residential, commercial and industrial needs.
*NEW! Always on, using special low power circuitry to sustain battery life and ensure your 2AC is always ready.
*NEW! Innovative ‘Battery Check’ button function ensures battery is in good condition*
*Category IV – 1000 V overvoltage rated product for best in class user protection
*Integrated clip design, optimized for pocket storage
*Powered by 2x AAA batteries
*Fluke ruggedness and reliability
*Use of Battery Check function is optional and for convenience only, it is not intended as a substitute for checking
the unit on a known live source before and after use.
SPECIFICATION
Operating principle : Senses the steady state electrostatic field produced by ac voltage through insulation without requiring contact to the bare conductor. A red glow at the tip indicates the presence of voltage.
Safety Compliance: Meets IEC 61010-1:2001, UL 61010-1 (2nd ed.), CAN/CSA-C22.2 No. 61010-1-04, and ISA-82.02.01 Pollution Degree 2, C-Tick
EMC Compliance: Meets IEC 61326-1:2006
Operating: 200 V ac to 1000 V ac, CAT IV 1000 V rated
Temperature:
Operating: -10 °C to 50 °C (-14 °F to 122 °F)
Storage: -10 °C to 50 °C (-14 °F to 122 °F)
Humidity:
0 % to 95 % (0 °C to 30 °C)
0 % to 75 % (30 °C to 40 °C)
0 % to 45 % (40 to 55 °C)
Altitude: 2000 m (CAT IV 1000 V)
Cleaning: Clean with damp cloth
Battery Life : Typical battery life of greater than one year
