Exclusive new hand held meter for HVAC air quality analysis
0-4000ppm CO2 NDIR
0-1000ppm CO Galvanic cell sensor
0-30% Oxygen Galvanic cell sensor
10-95% RH --- -25 to 48C dew point *0-50C
ALARMS with beeper
Record information 2 sec to 8 hours - data to SD card (card is optional extra)
Transfer to PC with spread sheet analysis (or USB download and optional PC software)

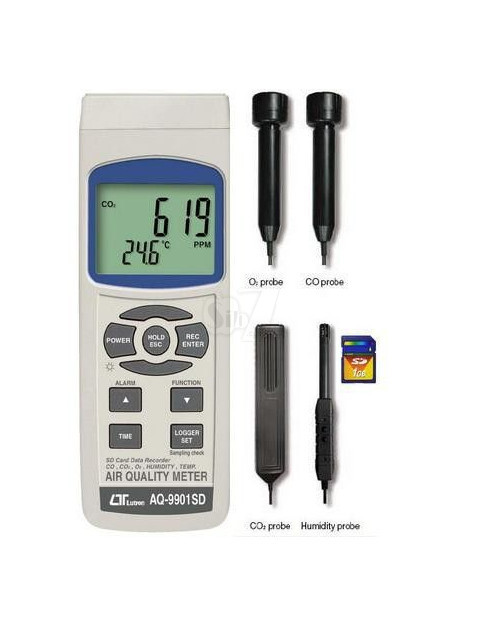

Comes as kit with all probes and carry case

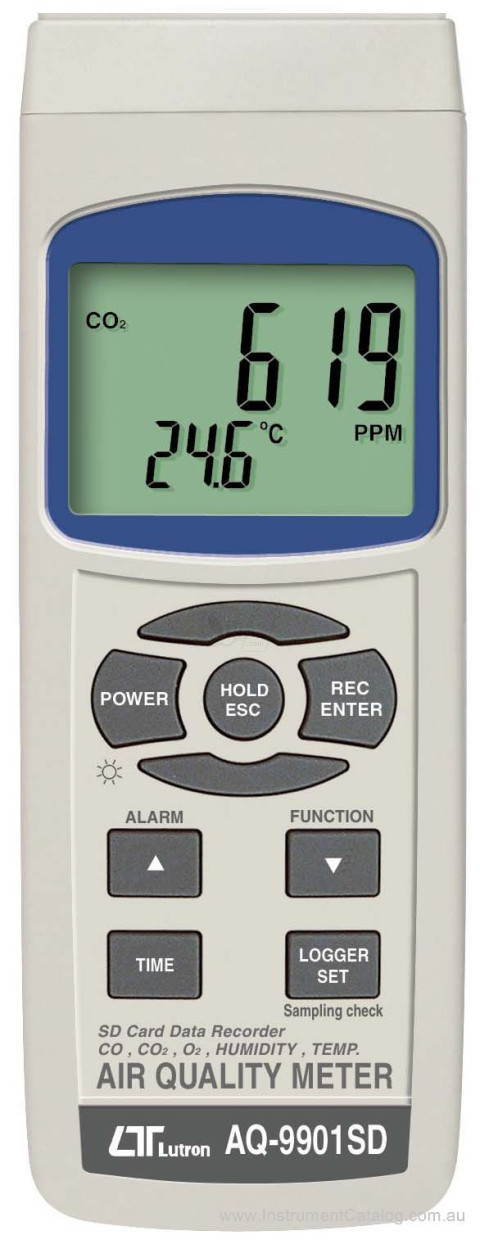

Air quality is important for productivity, safety and achieving optimum settings on ventilation and fresh air entry in HVAC control systems. The Lutron LU-AQ9901SD is an economical solution for determining base conditions and the effects of changes in control settings. Accuracy is sufficient for this purpose and the kit is supplied with sensors and carry case - just add an SD card up to 16Gb capacity. Data is transferred to a PC on the SD card and can be analyzed directly using a standard spread sheet program. The air quality meter is one of the new family of environmental instruments using SD card logging including LUX, sound level, heat stress index, 3 phase power and atmospheric pressure.
exclusive new hand held meter for HVAC air quality analysis
0-4000ppm CO2 NDIR
0-1000ppm CO Galvanic cell sensor
0-30% Oxygen Galvanic cell sensor
10-95% RH --- -25 to 48C dew point * 0-50C
ALARMS with beeper
Record information 2 sec to 8 hours - data to SD card ( card is optional extra)
Transfer to PC with spread sheet analysis ( or USB download and optional PC software)
Comes as kit with all probes and carry case
Air quality is important for productivity, safety and achieving optimum settings on ventilation and fresh air entry in HVAC control systems. The Lutron LU-AQ9901SD is an economical solution for determining base conditions and the effects of changes in control settings. Accuracy is sufficient for this purpose and the kit is supplied with sensors and carry case - just add an SD card up to 16Gb capacity. Data is transferred to a PC on the SD card and can be analyzed directly using a standard spread sheet program. The air quality meter is one of the new famity of environmental instruments using SD card logging including LUX, sound level, heat stress index, 3 phase power and atmospheric pressure.
FEATURES
* Real time recorder, save the data into the SD memory Dimension Meter 177 x 68 x 45 mm
card and can be down load to the Excel, extra software Humidity 197 mm in length.
is no need. User can make the further data or graphic probe
analysis by themselves. under the Excel software. CO2 probe 190 x 38 x 28 mm
* At the same time, the SD memory card can record 3 O2 probe 150 x 38 x 38 mm
probe' s data ( % RH/ CO2/ O2/ Temp. or CO probe 150 x 38 x 38 mm
% RH/ CO2/ CO/ Temp. ) along with the time information Accessories Instruction manual.............................. 1 PC
into the one Excel file at the same time. Included Hard carrying case, CA-08....................1 PC
* Manual data logger is available, during execute the CO2 probe....................................... 1 PC
manual datalogger function, it can set the different Humidity probe.................................. 1 PC
location no. ( position 1 to position 99 ) . O2 probe........................................... 1 PC
* Air quality measurement application, multi-function : CO probe.......................................... 1 PC
CO2 ( Carbon dioxide ) , CO ( Carbon monoxide ) , O2 Optional SD memory card ( 2 GB )
( Oxygen in air ) , Humidity, temperature measurement. Accessories AC to DC 9V adapter.
* CO2 range : 0 to 4, 000 ppm x 1 ppm. USB cable, USB-01.
* O2 range : 0 to 30.0 % x 0.1 % . RS232 cable, UPCB-02.
* CO range : 0 to 1, 000 ppm x 1 ppm. Data Acquisition software, SW-U801-WIN.
* Humidity range: 10 to 95 % RH.
* Dew point Temp. and Wet bulb Temp. measurement. ELECTRICAL SPECIFICATIONS ( 23± 5 )
* Temp. range : 0 to 50.0 .
* CO2 sensor : NDIR, long term reliability. CO2 ( Carbon dioxide )
* CO, O2 sensor : Galvanic cell type.
* Humidity sensor : Precision capacitance sensor Range 0 to 4, 000 ppm
* Alarm setting with the beeper sound output. CO2 Resolution 1 ppm
* Sampling time for data recorder is 2 seconds to 8 hours. ( Carbon Accuracy ± 40 ppm
* Complete set with 4 probes : dioxide ) * f1, 000 ppm.
CO2/ Temp. probe, O2/ Temp. probe, CO/ Temp. probe, ± 5% of reading
Humidity/ Temp. probe, main meter and the hard carrying 23 ± 5 . * > 1, 000 ppm f 3, 000 ppm.
case. ± 250 ppm typically
* Separate probe, easy for remote measurement. * > 3, 000 ppm, reference only
* Meter can cooperate with 2 GB to 16 GB SD card, SD Repeatability ± 20 ppm * f 3, 000 ppm.
card is optional. Temperature Range 0 to 50 , 32 to 122 .
* RS232/ USB computer interface. Resolution 0.1 degree
* Patented.
