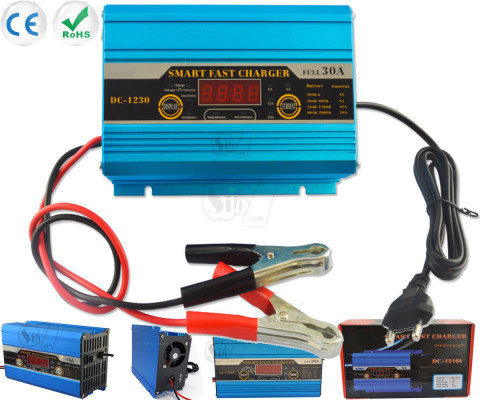

DC-1210A or DC-1220A or DC-2420A or DC-2420A Smart Battery Charger And recharge the battery or repair the battery automatically.
This Car Battery Charger have 10-second car engine start function and temperature control fan, when MCU detect the charger’s temperature more than 45 degrees will open the fan until below to 35 degrees.
Can choose charging current, 7A\14A\20A\40A.
Also have auto stop when full recharge function.
This charger uses AC Input Voltage. 220V is used to plug into a common home plug.
4A, 6A, 10A, and 5Ah-120Ah can be charged to the battery.
The Ah value of the battery is Capacity to supply electricity At a constant level of 20 hours, there are Ah units, each of which has different Ah values, most of which are displayed on the battery of each ball.
The front panel has a two-button setup and read button and a brightness indicator when the setting is complete.
By the functions. Comes with a large digital display.
Easy to read, there is an on-off control switch on the right side of the machine, the side of the machine will have a cooling fan.
When the temperature of the machine is high.
And when the temperature of the machine drops, the fan stops automatically.
Two front panel buttons.
On the left hand side is the Display for reading all five values, which will have a display channel for reading the values.
By pressing the display button repeatedly. To read the values.
Value 1 The Voltage symbol shows the voltage of the battery when the unit is charging in volts (V), which is displayed on the digital dial to select the value of 2 channels.
The current is displayed, which shows the charging current of the unit in the battery is in the Amp (A), the value of the battery in the battery.
Electricity shows the percentage of charge to battery.
At the bottom of the channel, 4 will display two values by pressing the current button twice to read the value is the Time / Temperature box shows the time of charging and heating of the device when charging.
It will also be displayed on the digital screen.
The button on the right hand side of the machine is the current button to select the function.
The charging current setting of the battery charger shows the same channel as the same function.
Channel 1 Selects the discharge current for charging.
2 A for battery charge not exceeding 10Ah next release of the chart.
4A for battery size 10Ah-40Ah and discharge current 6A Battery Size 20 Ah-80Ah, and finally, the maximum current of the unit.
10 A battery charge 40Ah-120Ah Battery Charger DC-1210A will automatically repair the battery when the battery is charging for a period of time.
One four hour First of the chart and it will automatically switch to the same chart, it will display a flashing light on the channel with the letters Battery.
Maintenances while recharging battery time A quarter hour is completed.
And will switch to the left flicker at the Change Indication channel is only one channel.
Displays the status of the normal charge and stops blinking when the battery is fully charged.
Then switch off the switch just to do this, you will have the battery ready to use immediately and can carry portable batteries to the battery anywhere when there is a problem.
The battery does not have electricity because the unit is compact, lightweight and easy to move.
Three-phase constant current, constant voltage, floating (trickle) quick charge.
10-second car engine start function.
High efficient power transfer technology.
Adjustable charging current 2A/4A/6A/10A
Battery auto fix feature
Compact and lightweight design.
All kinds of working state digital display.
Intelligent digital battery repair and active function.
Various power circuit protection.
Aluminum magnesium shell, plane draw bench and metal anodic oxidation technology.
Temperature control fan.
Reverse connecting protection
LCD screen display(Charging time, Temperature, Charging current/ voltage, Battery
You can use the charger's engine starting function to start up when coming across following problems:
1.The car has no electricity and breaks down.
2.The engine oil becomes thicker in winter, which makes it difficult to start up.
3.The car's engine is aging and it is unable to start up the car.
To ensure the safety of the car battery charger, 6 protections are designed, including overload protection, overvoltage protection, low voltage protection, high temperature protection and output short circuit protection, battery reverse protection.
Charger Type: Electric Charger
Charger Style: Intelligent Charger
Charger Application: Standard Battery
Model: DC-1210A or DC-1220A or DC-2420A or DC-2420A
Input voltage: AC:220V 50Hz
Input current: 2.5A
Maximum output current: 10A or 20A ±3A
The battery type: 12V /24V ,>24AH
Working temperature: - 10 Centigrade to 40 Centigrade
Storage temperature: - 20 Centigrade to 70 Centigrade
length of the cord, input power: 137 cm.
The length of the line to the out put 45 cm long with two wires of 2 colors,
the same length is in red and black.
Red is connected to the battery,
the cathode is black, and the battery is connected to the cathode.
Certification: CTIA, RoHS, CE
Body weight 0.75 kg.
Package Weight(kg): 1.2
