ELECT RG-160/SD Text and Animation Laser Display system Stage Lighting Projector Support TF card

Write a review
960,000 تومان
32150
Out of stock

ELECT RG-160/SD Text and Animation Laser Display system Stage Lighting Projector Support TF card

elect the professional choice

This latest stage laser show machine comes with 160mW laser power, beats anything on the market regarding price / performance.

160mW RGB laser with analog laser control and 15kpps (15.000 Points Per Second) scanner creates entirely new opportunities.

 Not only high brightness and high frequency, but with a sensible program and particularly the ability to create custom applications, will such a laser only become a nice effect in the long run.

Full ILDA control as well as DMX control of 128 pre-programmed effects and animations.

In addition, there are even direct control of the laser scanner, color and balance and functions via DMX for the best flexibility.

See below in the technical specifications for the DMX channels functions.

Set up a light show quickly and easily with this laser stage projector.

It is designed according to the security and good performance, which will be safer to human and environment.

Simple to set up & operate.

This laser stage projector can be widely used in home party, Christmas, DJs, Disco, etc.

Professional laser for clubs.

This device displays the various pre-programmed templates and models that can be created and programmed using any ILDA software.

The data can then be stored on SD card and used a laser device.

Seven Stars SD01RG relates to professional animation laser facilities for clubs and discos.

The DS01RG laser is a device that makes the drawings and written without the aid of a specific interface and without the need for an onsite computer.

With it is possible to create sequences of written and / or drawings for your events become increasingly personalized!

Just set your sequence on the SD card with the help of computer, plug in the device, connect and go!

The SD01RG laser is a device that will let your events always with a new and personalized face.

Brand: Big Dipper Laser - Seven Stars



Main features of this full color laser show equipment:

160mW SD Card Laser Light projector comes with MINI ILDA Laser Show software .

15Kpps scanning laser with various pre-programmed patterns.

Big Dipper high quality optics. Red laser beam> 100 mW, Green laser beam> 60 mW.

Long lasting solid state laser diode built in.

DIY patterns can be created and programmed via any ILDA-enabled software.

The data can be stored on an SD card and inserted into the laser light machine.

Easy guide to create your own logo and text in software and project it on walls.

Company logo, store promotion exhibition.

Widely used for commercial and promotion events.

Advertising effectiveness is enormous, when the laser illumination is shining, it soon attracts attention from people walking on the street.

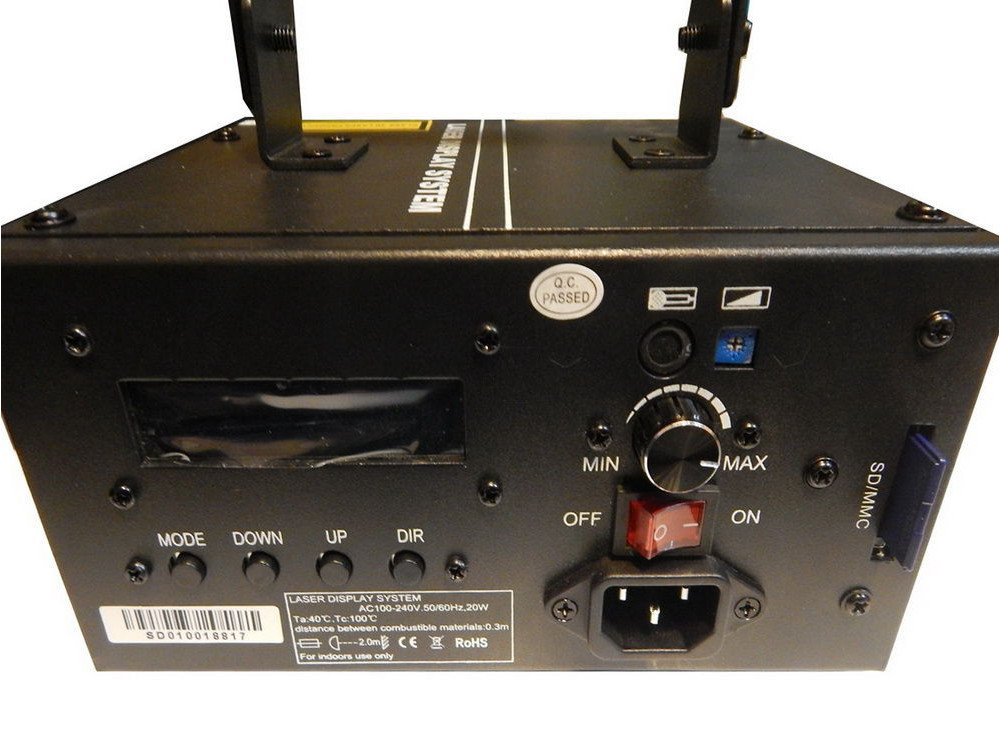

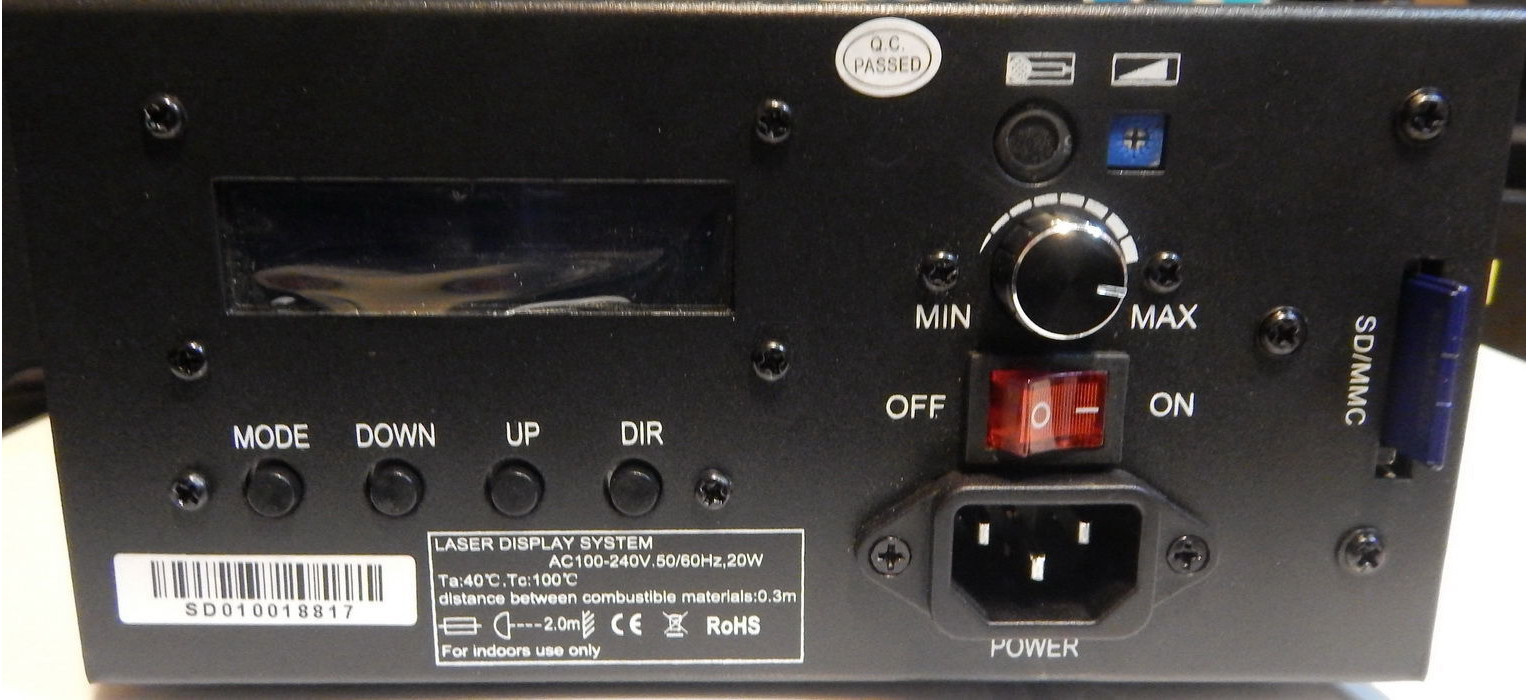

Control Modes: Program / ILDA / Audio / Auto.

The laser will play pre-programmed cartoon in program mode.

ILDA Mode: ILDA play mode, circularly shows a single ILDA files (file extension ILDA, not case-sensitive), the second line displays the current playback ILDA file name, press "UP" and "DOWN" to change the ILDA file, press the DIR key change the current working folder.

Micro-controllable high speed step motor: ±15° big angle scanning.

Automatic audio control.

Automatic program without audio control.

Control over pre-programmed effects via DMX.

Direct Control of the laser scanner and laser diodes via DMX.

Full control via ILDA.

Full color uniformly mixed by three laser diodes.

Can be operated with any ILDA-compatible controller.

Works great with this Quick show 2.0 FB3 Laser Show Designer Software.



Features:

Dimensions: 188*175*142.8 mm

Weight: 1.65 kg

Laser Diode Color: Green + Red

Green Laser power: 60mw

Red Laser Power: 100mw

Power supply: 100 / 240V 50/60HZ

Control: Via SD card, auto and audioritmicontroller (adjustable sensitivity )

Scanner angle: +/- 15

Cooling: Active / Cooler



management:

Sound active,

Auto mode,

SD Card mode

SD Card: custom templates

Separate switching mode of each template

Playing all the templates in turn,

Playing a separate package templates.

Led display information.

Air cooling.



Content:

x1 - Laser Device Laser Seven Stars

x1 - Power cable

x1 - Remote Control

x1 - CD-ROM with software for ILDA laser show



x1 - Instructions
