1CH Mini Surveillance DVR ,Support TF Card Audio and Video Record for Analog Security CCTV Camera
Overview:

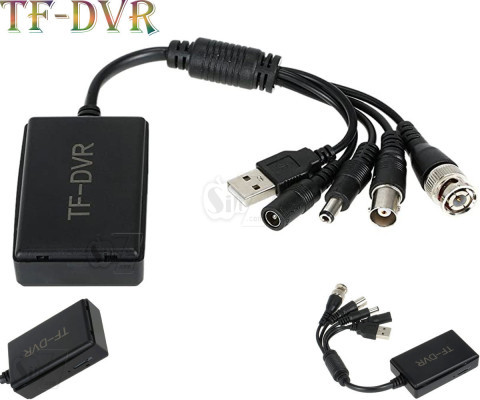

This item is a mini 1ch TF card DVR video recorder, which can be connected to CCTV analog camera to record video and audio on the TF card.
It supports auto record when power on, auto storage when power off, also with functions of video output, video playback, motion detection, etc.
Its mini portable design, powerful functions makes it widely used at home, office, supermarket, factory and other surveillance needed places.
Features:
Automatic video and audio record on the TF card when power on.
Maximum support 32G TF card, auto cover and cycle record.
Motion detection record 20fps, normal record 1fps.
Built-in lithium battery for record files storage when power off.

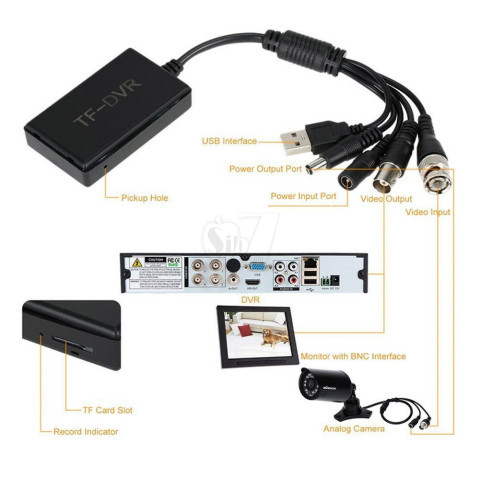

1 channel BNC video input, 1channel BNC video output to monitor or DVR.
Can be used as USB computer camera or U disk/TF card reader.
Time set and auto synchronization function.
Support playback on PC by USB port directly.
Support playback on TV with USB ports.
Specifications:
Resolution: 640*480
Record Format: AVI
Record Period: 2G or 120min per time
TF Card: Support 32G (not included), can record 2-7 days
Input: 1ch BNC video and audio input
Output: 1ch BNC or USB video output
Playback Ways: PC/TV
Power Supply: 8-15V (can use camera power)
Working Current: 40-50mA
Item Size: Approx. 71*45*19mm / 2.8*1.77*0.75in
Item Weight: Approx. 66g / 2.34oz
