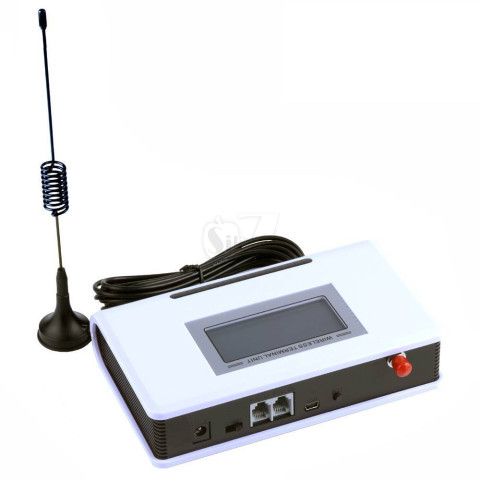

New FWT GSM Fixed Wireless Terminal SIM Card Phone Line Desktop Caller ID Dialer GSM850/900/1800/1900MHZ Worldwide Phone Box With Battery LCD display for Alarm System PABX Elevator IMEI Changeable
You can make phone call with this Terminal by connecting with a common wired desktop phone and install a GSM SIM card.
It is widely used in these areas: Remote area, Mountains, Telemarketing, Public shop, office, factory, Removable places such as ships, trains, and long distance buses, and some house without PSTN landline or PSTN cost expensive.
GSM Frequency: GSM850/900/1800/1900MHz Quad band FWT, widely used with many providers
Note: Products with electrical plugs are designed for use in the US. Outlets and voltage differ internationally and this product may require an adapter or converter for use in your destination. Please check compatibility before purchasing.
How to use this device?

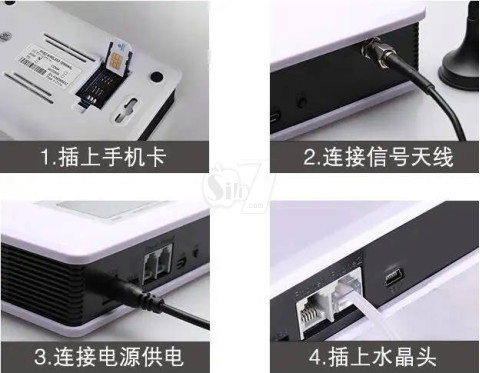

Step 1: Install a SIM Card
Insert the SIM card only when the terminal is switched off and the AC adapter is unplugged.

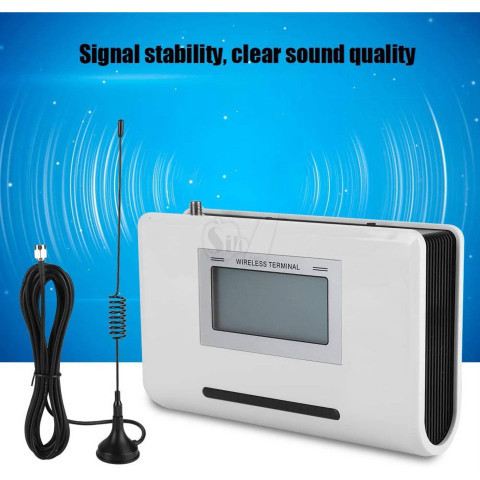

Step 2: Connect the Antenna
For antenna connection, you can use your mobile phone to search for the place where the strongest signal is, then put the antenna there. Please do not make the antenna too close to the terminal. It will disturb the signal of the terminal. Please do not make the antenna and the terminal too close to the TV set, computer, and radiogram etc. It will disturb the signal of the terminal.
Step 3:Connecting your terminal with desktop phone
To make calls, you should connect the telephone line with RJ11 phone port of GSM terminal and telephone set,

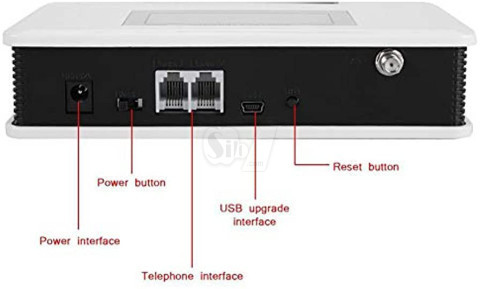

There are two communication portals at the side of the terminal .You can connect one or two desktop phones with terminal. (Please use the telephone line in the package)
Step 4: Connect power adapter and switch on the power.
Step 5: For a while, the device get GSM signal and enter normal working status.
Step 6: Make phone call (dial in and dial out) with your telephone set that connected with terminal.
The phone number of desktop phone is the GSM SIM card number inside terminal.
*When your phone is ringing, just lift up the handset of the telephone set and speak.
*Lift up handset or press the hand free key on the telephone set, then input the phone numbers you would like to dial out, you can call out to others.
Application areas:
It is widely used in these areas:
Remote country, mountains,
Dwelling house with weak signals,
Public telephone shops, offices, telemarketing,
Removable places such as ships, trains, and long distance buses.
Our wireless terminal also has these characteristics as below:
Easy to install, easy to operation, powerful capacity of signals receiving,
Clear talking setting, long using life, steady performance.
The main applications:
Connect the RJ-11 line to connect Ordinary telephone set for voice call.
Connect PBX for call extension.
Connect billing systems for public phone use.
Connect alarm system for security purpose. etc.
Features:
It is a 1 channel GSM Gate way with 2 RJ-11 outputs that you can connect two telephones.
It can connect with ordinary telephone set, PBX , VOIP Gate way, Billing meter etc. ;
Dialing tone frequency:450hz;
Employ Industrial module to make;
SIM card supported (1.8V, 3V);
Caller ID display. Time, date, Signal display
DTMF and FSK Dialing;
Bell signal;
Polarity reversal;
The RJ-11 socket which connect the phone or billing system for metering purpose;
Antenna socket (SMA);
Working status and Signal Strength by LCD Display
IMEI Change (Presetable).
Supports modem mode.
Volume adjustment. Time and date setting.
Specifications
GSM Frequency: GSM850/900/1800/1900MHz
Voltage: DC5V/DC12V
Power consumption: Static≤25MA emission≤300MA
Peak power consumption: 0.25W/0.5W
Receive sensitivity: -104db
Antenna amplifying: All directions: 3.0db; Certain/Selection: 12db
RJ11 Port: 2, can connect with two telephone sets.
Standby hours: 48 Hours
Talking time: 2-6 Hours
Charging time: 6 hours
Single package size: 15X15X10 cm
Single gross weight: 0.680 kg
