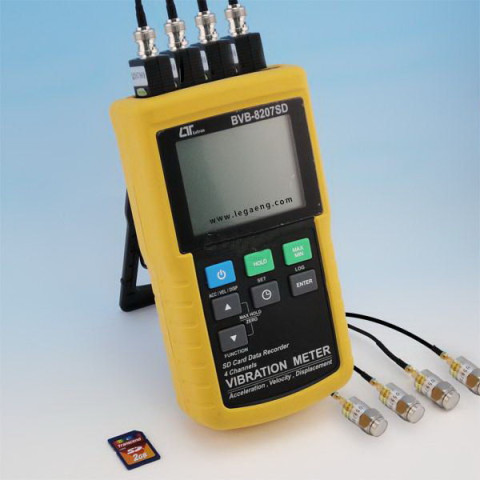

4 channels vibration recorder, use SD card to save the data along with time information, paperless.Real time data logger, save the measuring data along the time information (year, month, date,
hour, minute, second) into the SD memory card and can be downloaded to the Excel, extra
software is no need.
Show CH1 to CH4 vibration values in the same LCD.
Time information : Year, Month, Date, Hour, Minute and Second.
Sampling setting : 1 to 3600 seconds.
Function :
Acceleration/Velocity/Displacement.
Acceleration : 200 m/s2.
Velocity : 200 mm/s.
Displacement (p-p) : 2 mm.
Max hold, peak value, data hold, Max./Min..
RS232/USB computer interface.
Memory card size : 1 GB to 16 GB.
Supper large LCD with backlight, easy reading.
Data hold, Record (Max., Min.).
RS232/USB computer interface.
Include 1 PC sensor vibration set, VB-83.
Extra vibration sensor set, VB-83 can be ordered. When changing the VB-83, it is not necessary to
make the new calibration again.
Optional Tip type vibration sensor set, VB-84.
DC 1.5V (UM-3/AA) x 8 PCs or DC 9V adapter in.
Patented.
Simple backlit display simultaneously displays all four measurements
User set recording intervals: 5, 10, 30, 60, 120, 300, 600 seconds
Record directly to included 2GB memory card as CSV file accessible via any spreadsheet (excel), no software to install

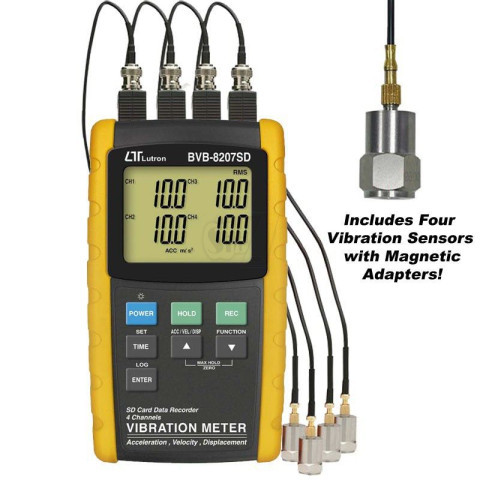

Includes four vibration sensors with magnetic adapters and 3.9 foot long cables
Wide frequency response - 10Hz to 1kHz
Measure Vibration Acceleration, Vibration Velocity or Vibration Displacement on each sensor
RMS or Peak Value measurement modes (Acceleration or Velocity)
Peak to Peak or Max measurement Modes (Displacement)
Data Hold, Auto Power Off
Measure Acceleration in meter/s^2 or g ft/s^2
Measure Velocity in mm/s, cm/s or inch/s
Measure Displacement in mm's or inch's
FEATURES
4 channels vibration recorder, use SD card to save the Sampling Time Approx. 1 second.
4 channels' data along with time information, paperless. of Display
Applications for industrial vibration monitoring : Operating 0 to 50 .
All industrial machinery vibrates. The level of vibration is Temperature Less than 85% R.H.
a useful guide to machine condition. Poor balance, and Humidity
misalignment & looseness of the structure will cause the Power Supply * Alkaline or heavy duty DC 1.5 V battery
vibration level increase, it is a sure sign that the ( UM3, AA ) x 8 PCs, or equivalent.
maintenance is needed. * ADC 9V adapter input. ( AC/ DC power
* Channels no. : 4 channels ( CH1 to CH4 ) adapter is optional ) .
vibration measurement. Power Current Normal operation ( w/ o SD card save
* Frequency range 10 Hz - 1 kHz, sensitivity relative meet data and LCD Backlight is OFF) :
ISO 2954. Approx. DC 12 mA.
* Professional vibration meter supply with vibration sensor When SD card save the data and LCD
& magnetic base, full set. Backlight is OFF) :
* Metric & Imperial display unit Approx. DC 35 mA.
* Acceleration, Velocity, Displacement measurement. Weight Meter : 515 g/ 1.13 LB.
* RMS, Max hold, Peak value measurement. Probe with cable and magnetic base :
* Max. Hold reset button, Zero button. 99 g/ 0, 22 LB
* Wide frequency range. Dimension Meter : 203 x 76 x 38 mm
* Data hold button to freeze the desired reading. Vibration sensor probe:
* Memory function to record maximum and minimum Round 16 mm Dia. x 37 mm.
reading with recall. Cable length : 1.2 meter.
* Separate vibration probe with magnetic base, easy operation. Accessories * Instruction manual........... 1 PC
* Real time SD memory card Data logger, it Built-in Clock Included * Vibration sensor set, VB-83 with
and Calendar, real time data recorder , sampling time set cable..............1 PC
from 1 second to 3600 seconds. * Magnetic base..............1 PC
* Manual data logger is available ( set the sampling Optional * Vibration sensor set, VB-83 with cable
time to 0 ) , during execute the manual data logger Accessories * SD Card ( 2 G )
function, it can set the different position ( location ) No. * AC to DC 9V adapter.
( position 1 to position 99 ) . * USB cable, USB-01.
* Innovation and easy operation, computer is not need * RS232 cable, UPCB-02.
to setup extra software, after execute data logger, just * Data Acquisition software, SW-U801-WIN.
take away the SD card from the meter and plug in the
SD card into the computer, it can down load the all the ELECTRICAL SPECIFICATIONS ( 23± 5 )
4 channels measured value with the time information (
year/ month/ date/ hour/ minute/ second ) to the Excel Acceleration ( RMS, Peak, Max Hold )
directly, then user can make the further data or graphic
analysis by themselves. Unit m/ s^ 2
SD card capacity : 1 GB to 16 GB. Range 0.5 to 199.9 m/ s^ 2
* LCD with green light backlight, easy reading. Resolution 0.1 m/ s^ 2
* Can default auto power off or manual power off. Accuracy ± ( 5 % + 2 d ) reading
* Data hold, record max. and min. reading. @ 160 Hz, 80 Hz, 23 ± 5
* Microcomputer circuit, high accuracy. Calibration 50 m/ S^ 2 ( 160 Hz )
* Power by UM3/ AA ( 1.5 V ) x 8 batteries or DC 9V adapter. Point
* RS232/ USB PC COMPUTER interface.
* Include 1 PC vibration sensor, VB-83. Unit g @ 1 g = 9.8 m/ s^ 2
* Extra vibration sensor, VB-83 can be ordered. Range 0.05 to 20.39 G
When change the VB-83, it is not necessary to make Resolution 0.01 G
calibration again.
