ISO-9001, CE, IEC1010
FEATURES

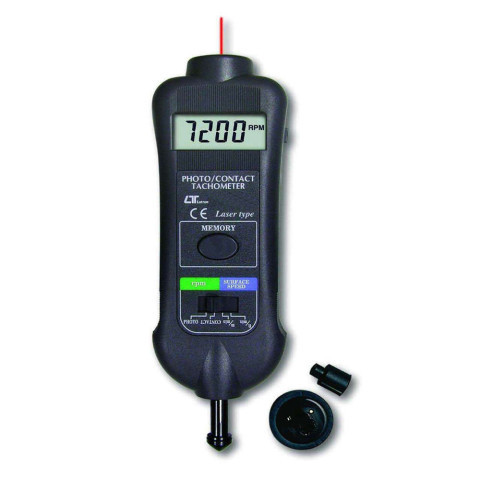

* World's patent, Multi-functions, one instrument combine Photo Tach.( RPM ) & Contact Tach. ( RPM, m/min., ft/min. ).
* Laser light source, long detecting distance.
* Wide measuring range from 0.5 to 100,000 RPM.
* 0.1 RPM resolution for the measured value < 1000 RPM.
* High precision with 0.05% accuracy.
* The last value, max., value, min. value will be stored into the memory automatically & can be obtained by pressing Memory Call Button.
* High visible LCD display gives RPM reading exactly with no guessing or errors & saves battery energy.
* This tachometer used the exclusive one chip MICRO-COMPUTER LSI circuit & crystal time base, offer the high accurate measurement & fast sampling time.
* The use of durable, long lasting components, including a strong, light weight ABS plastic housing, assures almost maintenance free performance for many years.
* The housing cabinet has been carefully shaped to fit comfortable in either hand.
SPECIFICATIONS
Measurement & Range:
Photo Tachometer :
10 to 99,999 RPM.
Contact Tachometer :
0.5 to 19,999 RPM.
Surface Speed :
m/min. - 0.05 to 1,999.9 m/min.
ft/min. - 0.2 to 6,560 ft/min.
Resolution
RPM:
0.1 RPM ( < 1,000 RPM ).
1 RPM ( 1,000 RPM ).
m/min.:
0.01m/min. ( < 100 m/min. ).
0.1m/min. ( 100 m/min. ).
ft/min.:
0.1 ft/min. ( < 1,000 ft/mn. ).
1 ft/min. ( 1,000 ft/mn. ).
Display 5 digits, 10 mm ( 0.4" ) LCD.
Accuracy ± ( 0.05% + 1 digit ), RPM only.
Detecting distance: 5 cm to 200 cm typically.
* The specification detecting distance ( max. 200 cm ) are tested under the 1800 RPM & the size of the eflecting tape is 1 cm x 1 cm.
Light Source 1 mW class 2 laser diode.
Time base Quartz crystal.
Circuit Exclusive one-chip of microcomputer LSI circuit.
Operating Temperature: 0 - 50 ℃ ( 32 - 122 ℉ ).
Operating Humidity:Less than 80% R.H.
Memory Last/Max./Min. value.
Battery 4 x 1.5V AA ( UM-3 ) batteries.
Power Consumption
Photo type :
Approx. DC 21 mA.
Contact type :
Approx. DC 7 mA.
Size 215 x 67 x 38 mm.
( 8.5 x 2.6 x 1.5 inch ).
Weight 280g ( 0.61 LB )
* including batteries.
Accessories Included
Carrying case............................. 1 PC.
Reflecting tape marks
( 600 mm )................................ 1 PC.
RPM adapter ( CONE )
.............................................1 PC.
RPM adapter ( FUNEL )
.............................................1 PC.
Surface speed test wheel
.............................................1 PC.
Operation manual...................... 1 PC.
Patent: The DT-1236L had following countries patent & patent pending
USA - 4,823,080 GERMANY - G9015492.4, G8708922.0
TAIWAN - 45478 & other countries patent pending.
