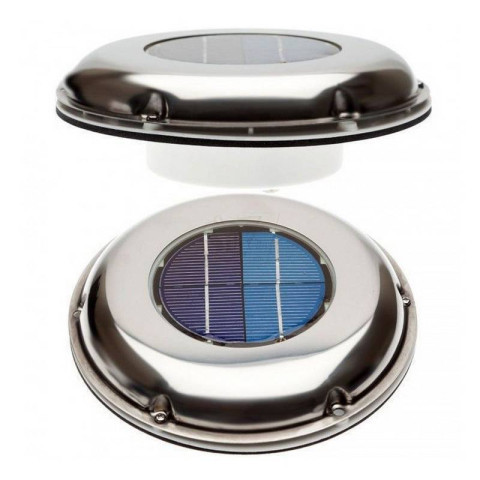

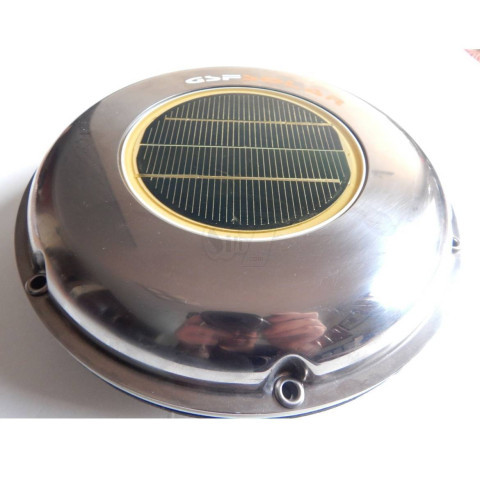

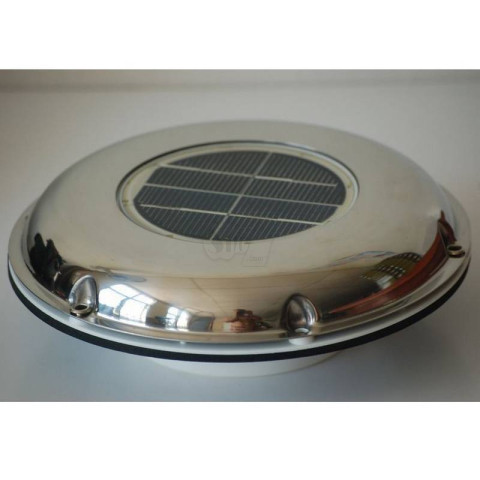

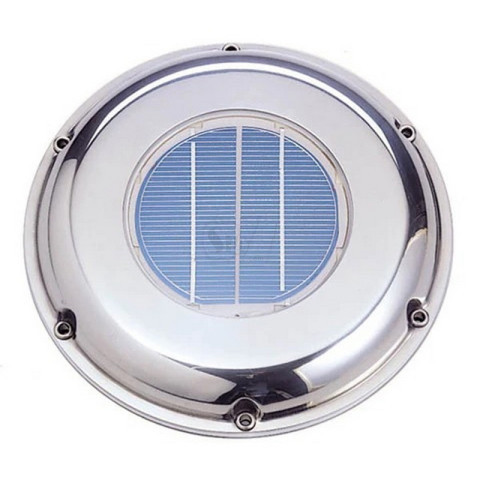

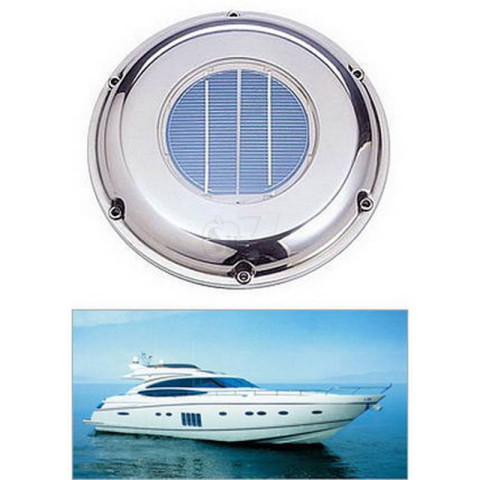

GSF SVTGSF-212S LOW PROFILE AUTOMATIC STAINLESS STEEL SOLAR FAN VENTILATOR
Deluxe low profile GSF Solar powered fan ventilator in stainless steel finish,
designed for domestic, marine or caravan use,
these can be mounted on metal, glass, fibreglass,brick surfaces etc.
,they ventilate and extract heat and odors and are great for use in conservatories,bathrooms,greenhouses,boats,sheds etc,
great for summertime use but they can also be used during the winter months to help extract damp air,
the ventilator is constructed within a weather and water resistant low profile stainless steel housing for protection,
the hole cutout size needs to be between 116mm and 120mm max,
these solar ventilators are fully Automatic so will start extracting whenever it is bright or sunny weather,

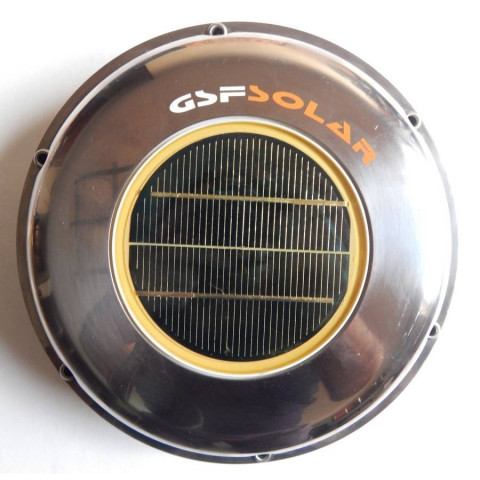

the powerful monocrystalline cells help to keep the fan running even in fairly cloudy conditions
making it great for year round use and ideal for solar ventilation purposes,

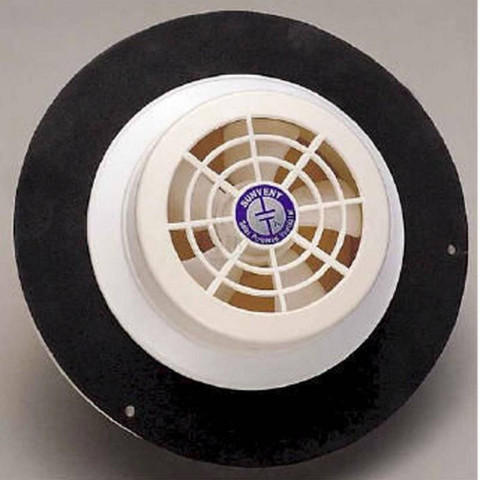

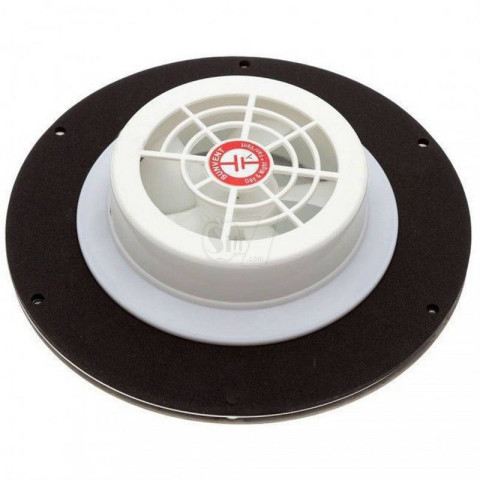

Please note,the solar cell configuration on the top of the solar ventilator may differ from batch to batch and these are not supplied with a vent plate to fit on the interior wall though this isn't a necessity,
extraction rate for these solar ventilators is approx. 678 Cubic feet per hour or approx.
19 Cubic meters per hr in full sun,
if you only need to ventilate during daylight hours these are a fantastic little ventilator that work well year round
All year around use as it can be used in fairly cloudy conditions and helps prevent heat build up, mold, condensation, mildew, musty odors, damp
Model: SVTGSF-212S
Features:

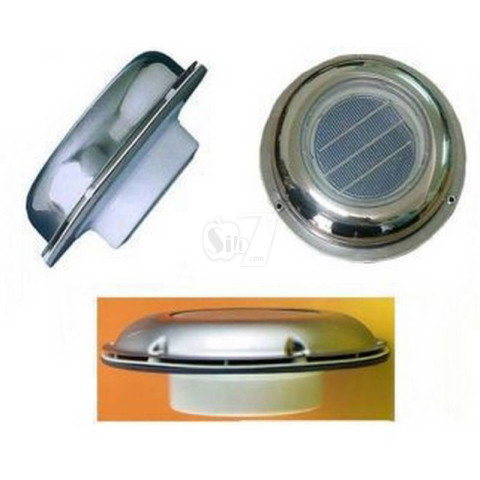

Low profile
Weather resistant stainless steel
Watertight - silent fan - pollution free
Fully automatic operation, powered by solar energy.
Avoid heat build-up at an area being ventilated.
Prevent mold, condensation, mildew, musty odors, damp, etc.
Moves 11.6 cubic feet of air per minute.
Water resistant, no-noise, safe and pollution free.
Made in CANADA
5 Years Limited Warranty.
Easy installation
Size: 215mm x 85 mm
Boat Size: Recommended ventilator use
Up to 24 ft: 1 exhaust vent
Up to 40 ft: 1 exhaust vent and 1 intake vent
From 40 ft or larger: 2 exhaust vent and 1 intake vent

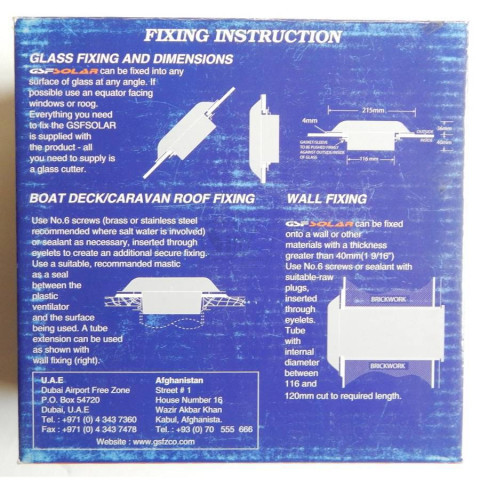

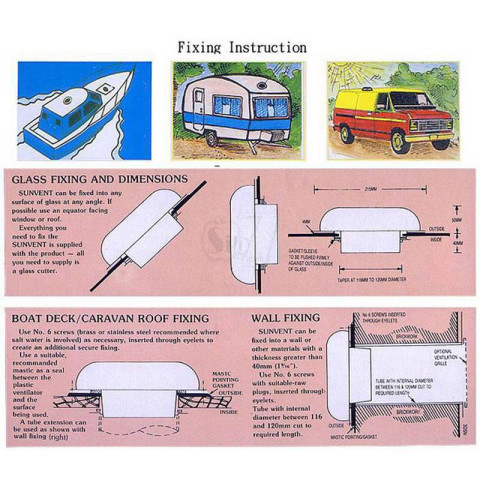

Installation Procedure

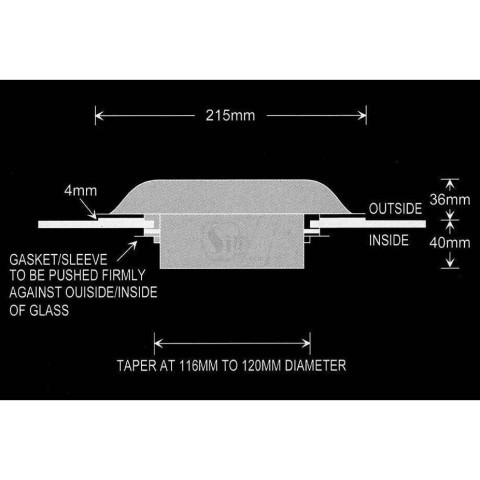

Installed on glass:
GSF could be installed onto glass surface. However, as much as possible it
should be installed facing the sun equator.
Installation accessories are included in this package, all you need is just a glasscutter.

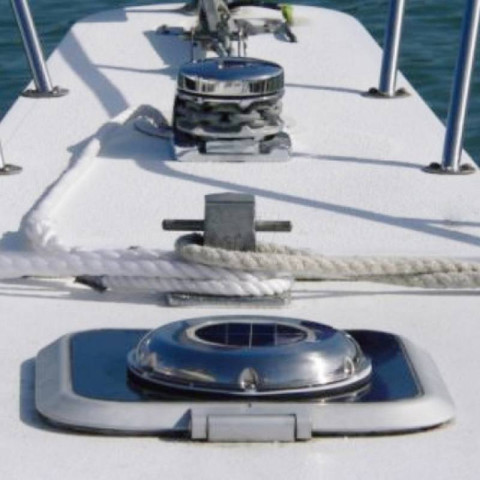

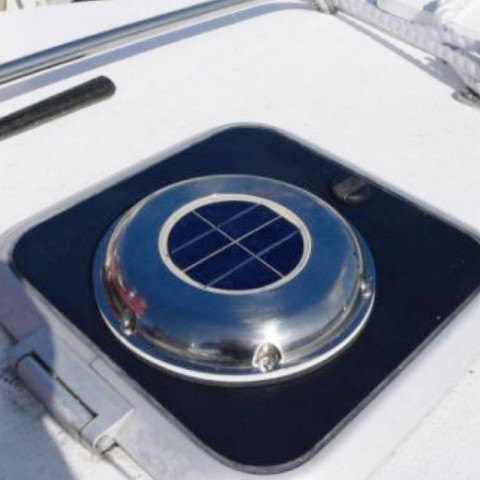

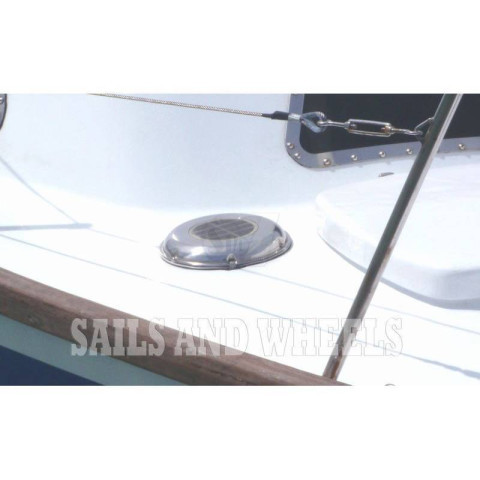

Installed on boat deck / caravan roof:

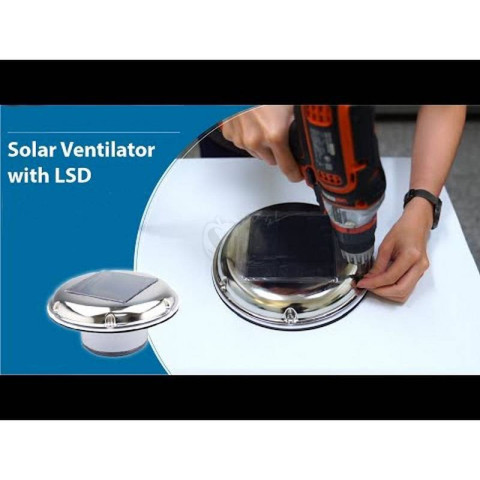

For additional fixing, insert no. 6 screws through the eyelets; it is recommended to use
screws made of brass or stainless where salt water is involved.
Use suitable mastic to seal the area between plastic ventilator and the surface of installation.
For installation purposes, a tubular extension can be use as shown on the right picture.
Installed on wall:
GSF could be installed unto walls or other materials with a thickness greater than
40mm (1 & 9/16 inches).
Through the eyelets insert no. 6 screw along with suitable raw plugs. Use tubular with a diameter of 116 ~ 120mm cut required length.
