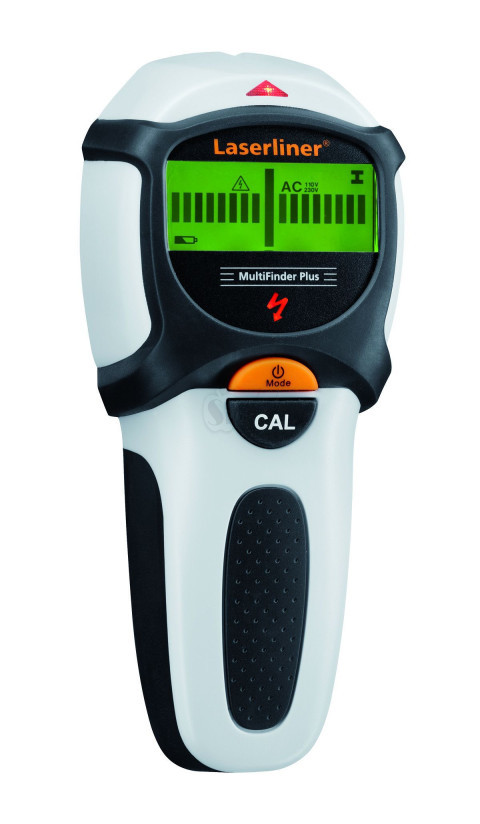

Laserliner MultiFinder Plus - 080.965A
Several integrated sensors make the MultiFinder Plus a scanning and detection tool for many different applications.
One-button operation to switch between the different measurement modes
The user guide on the LC display makes the MultiFinder Plus easy and reliable to use.
Auto-Calibration: adjusts the device to different surfaces immediately after switching on.
Auto-Cal Plus: allows objects to be localized easily in Metal-Scan mode.
Acoustic and visual detection signals for finding objects.
High safety is guaranteed by the permanent voltage warning function.
Special feature: in metal mode, it is even able to detect concealed lines when they are not live. the device is capable of detecting electrical wires without voltage
STUD-SCAN: Detection method for inclusions in the wall plaster (glass fibers, wood panels and beams etc. etc.) Scan depth 2-4 cm

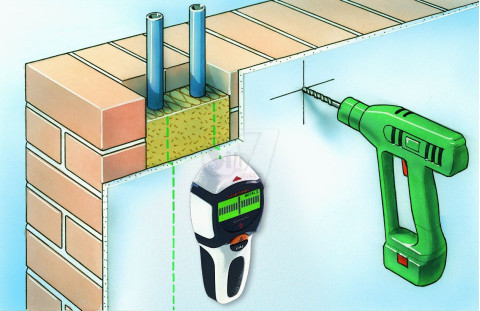

METAL-SCAN: Detection of metals in masonry and reinforced concrete walls. Can detect metals in any non-metallic composition of the walls. Depth of scanning max 5 cm copper and 10 cm metal

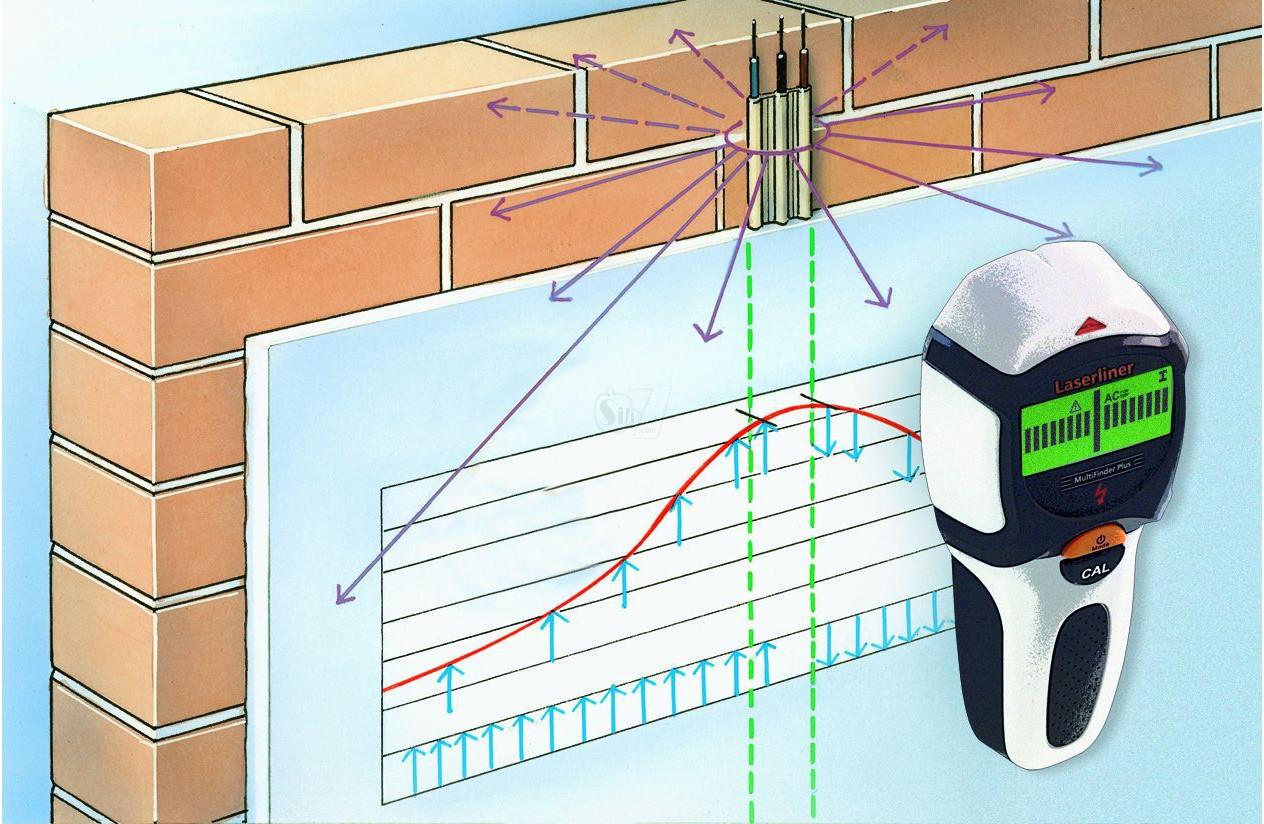

AC-SCAN: For the location of live wires in plasters, wood panels or other non-metallic panels. No live wires can be detected in reinforcement walls. Scan depth max. 4 cm
Technical data
Product code: 080.965A
DETECTION RANGE AC: 110 - 230V, 50 - 60 HZ
WORKING TEMPERATURE: 0°C ... 40°C
STORAGE TEMPERATURE: -20°C ... 70°C
POWER SUPPLY: 1 x 9V alkali battery (type 6LR 61)
DIMENSIONS (W x H x D): 80 x 186 x 40 mm
WEIGHT (incl. battery): 230 g
Package content

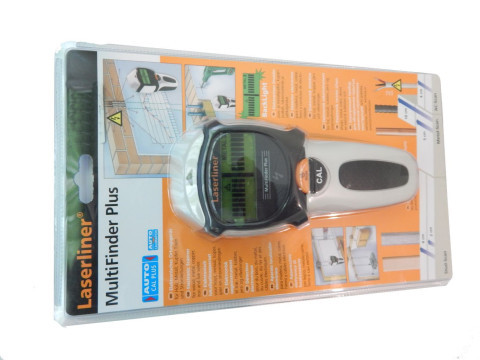

MultiFinder Plus detector, battery
Scanning methods
