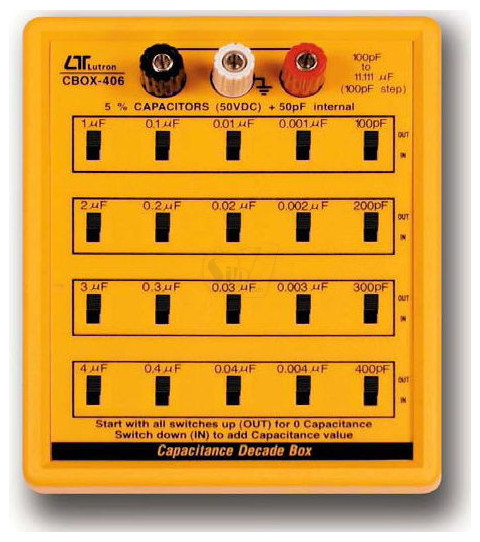

Pocket size, offering accurate,
reliable performance.
* 100 pF to 11,111 uF, wide
range and high resolution
( 100 pF per step ), practical
and versatile tools.
* With five decades of capacitance.
* Slide switches that allow the
user to simply add or subtract
for desired value.
* Terminals with multi way
binding posts, one to switch
shield case.
* ABS plastic housing case,
rugged components.
* Applications :
Troubleshooting, maintenance
Education & Vocational training
Production line testing
Radio and TV services
Working standards
FEATURES
* Applications :
General applications
Troubleshooting, maintenance
Education and Vocational training
Production line testing
Radio and TV services
Working standards
Research design & develop
Physics laboratory work
* Pocket size, offering accurate, reliable performance.
* 100 pF to 11,111 uF, wide range and high resolution
( 100 pF per step ), practical and versatile tools.
*With five decades of capacitance.
* Slide switches that allow the user to simply add or
subtract for desired value.
* Terminals with multi way binding posts, one to switch
shield case.
* ABS plastic housing case, rugged components.
SPECIFICATIONS
Range 100 pF to 11,111 uF ( 100 pF per step )
Accuracy 5% capacitors used throughout.
@ < 1 uF, 1 KHz test frequency
@ >= 1 uF, 100 Hz test frequency
Voltage Limit 50 V DC, non-polarized capacitors.
Internal 50 pF max.
Residual
Capacitance
Power Supply None.
Operating 0 to 50 ℃(32 to 122 ℉).
Temperature
Operating Less than 80% RH.
Humidity
Weight 304 g/0.69 lb.
Dimension 14.7 cm x 11.7 cm x 5.5 cm.
( 5.79 x 4.61 x 2.16 inch ).
Accessories Operation Manual.................................... 1 PC.
OPERATION PROCEDURE
1. Start with all switches up ( OUT ) for minimum capacitance.
2. Switch down ( IN ) to add Capacitance value.
