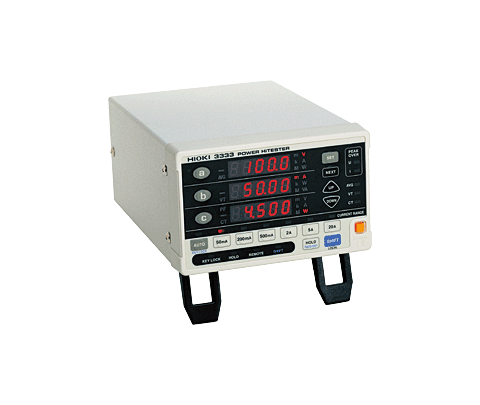

The Hioki 3333 Power HiTESTER offers simple operating procedures and quick and easy-to-understand readings and alarm displays. Settings can be made for obtaining the average of captured data (AVG), VT ratio (conversion ratio), CT ratio, GP-IB address, integration time (from 1 minute to 10,000 hours), and D/A Output Parameters.
Information regarding the Hioki 3333 Power HiTESTER's currents status such as display hold, remote control settings, and key lock (to prevent unauthorized reconfigurations) can be viewed at a glance.
High accuracy (0.1% rdg. ± 0.1% f.s.)
Maximum cost performance
Multiple functions; Selectable simultaneous display of voltage, current, power
Complete Accuracy over a wide input range
Measure AC Loads
Capture Inrush current with the peak measurement function
Intuitive Setting procedures

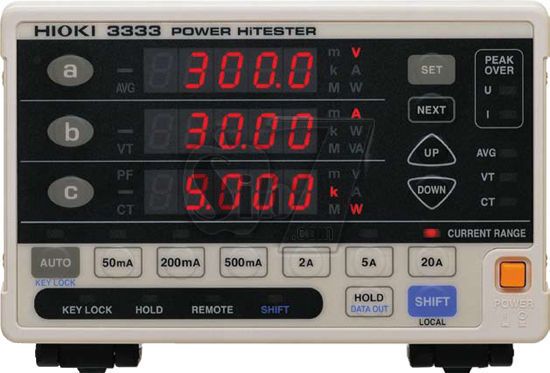

Easy to understand Displays
Error checking at a glance
Universal power supply
Computer compatible
Specifications:
Measurement lines : Single-phase 2-wires
Measurement items : Voltage, Current, Active power, Apparent power, Power factor
Measurement ranges : Voltage range: 200 V AC (300 V Max.)
Current range: 50/ 200/ 500 mA, 2/ 5/ 20 A AC (30 A Max.)
Depends on combination of voltage and current range
(Power range: 10.000 W to 4.000 kW)
Input resistance (50/60 Hz) : Voltage: 2.4 MΩ Current: 7 mΩ or less (direct input)
Basic accuracy :
[Guaranteed for 1 year] ±0.1 % rdg. ±0.1 % f.s. (Voltage, Current, Active power, at 45 to 66 Hz, input current 20 A or less)
[Guaranteed for 3 years] ±0.1 % rdg. ±0.2 % f.s. (Voltage, Current, Active power, at 45 to 66 Hz, input current 20 A or less)
Display refresh rate : 5 times/second
Frequency characteristics : 45 Hz to 5 kHz
Other functions :Scaling (VT, CT ratio settings), Average function
Interface : RS-232C standard, (Model 3333-01 also includes GP-IB)
Power requirements : 100 to 240 V AC, 50/60 Hz, 20 VA max.
