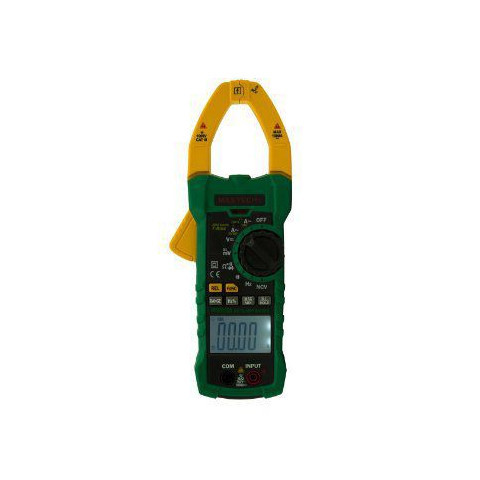

Mastech MS-2015A AC Digital Clamp Meter True RMS
The meter meets GB/T 13978-92 digital multimeter general technology conditions, GB4793.1-1995 (IEC 61010-1, IEC 61010-2-032) electronic measurement instrument safety requirements with secondary pollution and over-voltage standard of CAT III 600V.
Specification:
DC Voltage 60mV / 600mV / 6V / 60V / 600V± (0.7% + 3) 1000V (±0.8% + 2)
AC Voltage 60mV / 600mV / 6V / 60V / 600V ± (0.8%+3) 750V ± (1.0%+4)
AC Current 60A / 600A / 1000A ± (2.0% + 6)
Resistance 600 / 6K / 60K / 600K / 6Mohm ±(0.8%+3) 60Mohm ±(1.2% + 3)
Capacitance Accuracy 10nF / 100nF / 1000nF / 10uF / 100uF / 1000uF / 10mF / 100mF ±(4.0% + 5)
General
Brand MASTECH
Model MS2015A
Quantity 1Piece
Color Black + Green
Material Iron + Copper + ABS
Specification
Screen Size 4.5 x 3.0cm
Max. Display 6000
DC Voltage 60mV / 600mV / 6V / 60V / 600V± (0.7% + 3) 1000V (±0.8% + 2)
AC Voltage 60mV / 600mV / 6V / 60V / 600V ± (0.8%+3) 750V ± (1.0%+4)
AC Current 60A / 600A / 1000A ± (2.0% + 6)
Resistance 600 / 6K / 60K / 600K / 6Mohm ±(0.8%+3) 60Mohm ±(1.2% + 3)
Capacitance Accuracy 10nF / 100nF / 1000nF / 10uF / 100uF / 1000uF / 10mF / 100mF ±(4.0% + 5)
Frequency Accuracy Frequency (From Clamp) 0~10KHz (±1.5%+5); Frequency (AC Voltage) 0~10KHz (±1.5%+5 ); Logic Frequency 0~10KHz (±0.5%+5)
Transistor Test No
Temperature Test No
Frequency Test Yes
Power Consumption Test No
Short-Circuit Protection Yes
Short Circuit Buzz Yes
Auto Power Off Yes
Powered By 6F22 9V battery
Battery Number 1
Battery included or not No
Other Features
Other Features Jaw Opening: 40mm/1.6"; Duty Cycle: 10%~90%(±3); Continuity Buzzer: <50ohm
Dimensions & Weight

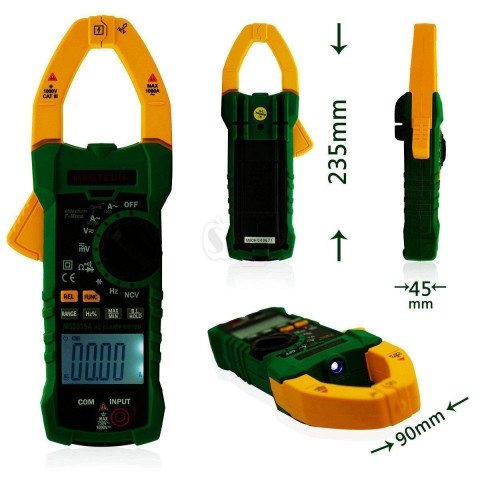

Dimensions 9.37 in x 3.62 in x 1.97 in (23.8 cm x 9.2 cm x 5 cm)
Weight 25.4 oz (720 g)
