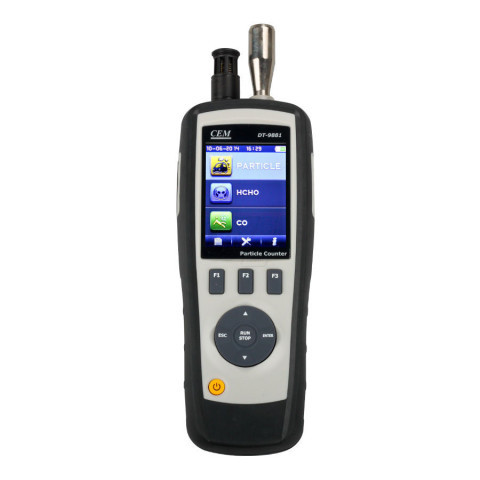

DT-9881 CEM Handheld 4 in 1 Particle Counter PM2.5 with Camera + IR AIR GAS (HCHO/CO) Meter
DT9881 is 4 in 1 Particle Counter with 2.8”color TFT LCD display & a micro SD memory card for capturing images(JPEG) or video(3GP) for viewing on your PC, providing fast, easy and accurate readings for particle counter, GAS (HCHO,CO) detectors, air temperature & relative humidity, most surface temperature measurements.
It is the first combination of these measurements in global, would be the best instrument for environment protection and energy save.
The dew point temperature measurement will be very visible for wet and dry proof.
It is a good hand for industrial measurements and data analyzing, the real scene and time can be displayed on color TFT LCD.
Any memory readings can be recorded in SD card the user can be back in office to analyze the measured air quality under the support of software.
TOP 13 Reasons to get DT-9881 :
1.2.8" TFT 320x240 pixels Color LCD display
2.Images(JPEG) & Video(3GP)
3.Simultaneously measure and display 6 channel of particle sizes, measure particle size down to 0.3 μm
4.IR temperature measure & Laser targeting
5.GAS (HCHO,CO) detectors(New functions are added compared with AT157)
6.Air temperature and humidity, Dewpoint & Wet bulb temperature
7.Max, Min, DIF, AVG record, Date/time setup controls, High and low alarm
8.Adjustable emissivity & Trigger lock
9.MicroSD (MAX. use 8GB) memory card, Bluetooth /USB interface
10.Auto Power Off
11.Selectable sample time, count data, programmable delay
12.Store 5000 records of date, time, counts, relative humidity, temperature, sample volumes, alarms and location label
13.Language:English, Chinese
Specifications:
Particle Counter
Channel: 0.3, 0.5, 1.0, 2.5, 5.0, 10μm
Flow Rate: 0.1ft3(2.83L/min) controlled by internal pump
Count Modes: Totalize, Concentration, Audio
Coincidence Loss: 5%, 2000000 particles per ft3
IR Temperature Measure
IR Temp. Range: -20.0ºC to 500.0ºC/-4.0ºF to 916ºF; Basic Accuracy: ±1.5% of reading
Optical Resolution: 8:1 Distance to Spot size
Emissivity Adjustable: 0.10~1.0 Adjustable
Response Time: 500mS
Air Temperature Measure
Air Temp Range: 0 to 50ºC/32 to 122ºF; Basic Accuracy: ±0.5ºC/1ºF
Humidity Range: 0 to 100%RH; Basic Accuracy: ±2.5%RH(20%~80%RH)
Dew Point Temp. Range: -30~100ºC/ -22~199ºF
Wet Bulb Temp. Range: 0~80ºC/ 32~176ºF
GAS Detectors
HCHO (methanal) Range: 0.01~5.00ppm; Basic Accuracy: ±5%± 0.01ppm
CO (carbon monoxide) Range: 0~1000ppm; Basic Accuracy:±5% ± 10ppm
Standard:
ASTM F649-01
SATM F328-98
EN 61326
JIS B9921
GB 16292
Package includes:
Particle Counter
User Manual
USB Cable
Zero Count Filter
7.4 Li-ion Battery
AC Adapter
Tripod
Carrying case
Software
Manufacturer's Calibration Test Report
