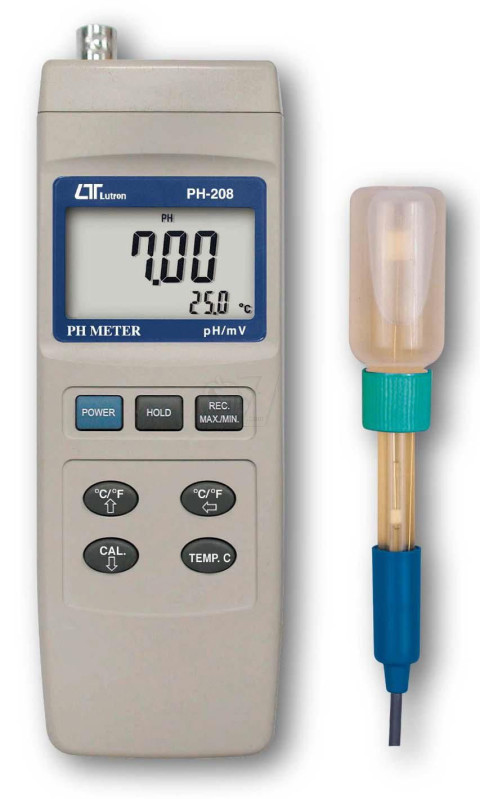

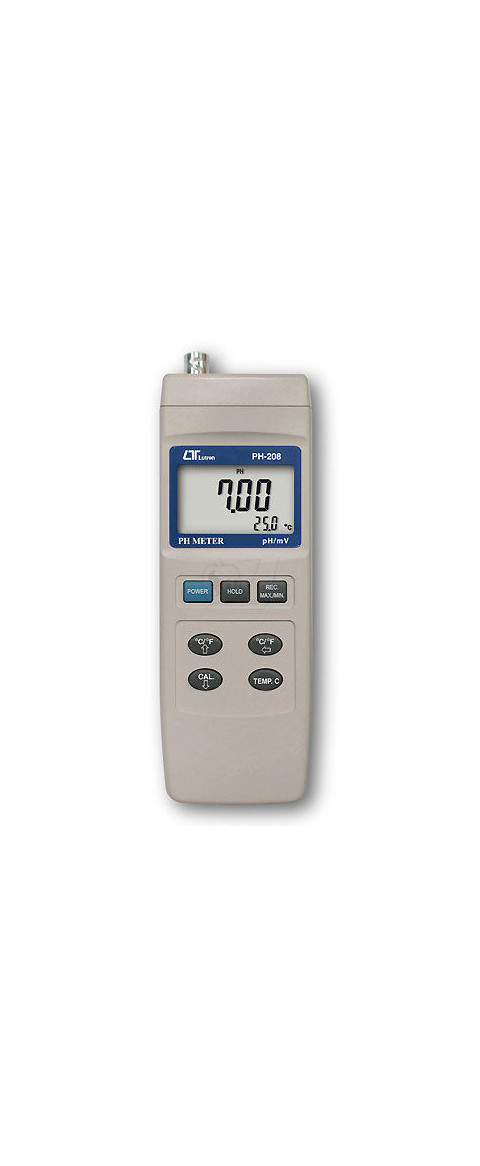

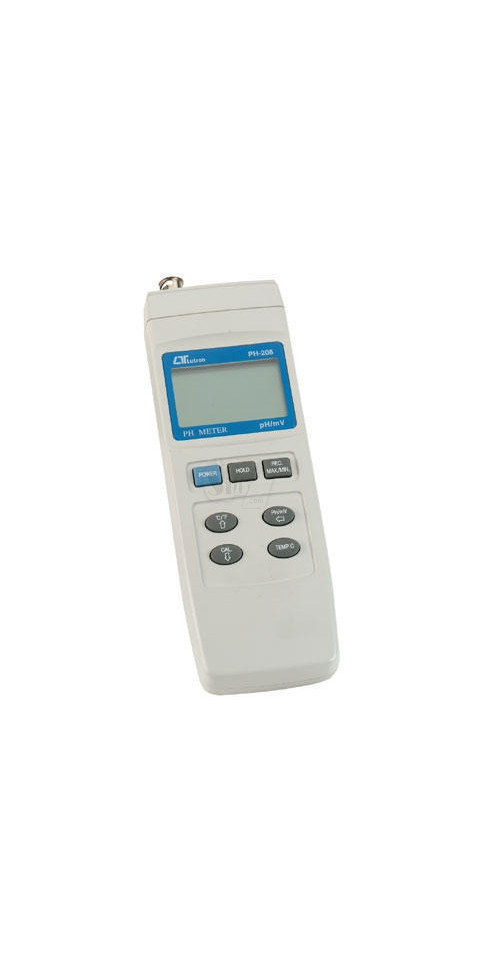

The Lutron PH-208 pH meter features a BNC connector, making it compatible with all BNC pH probes.
Professional PH/mV METER. PH range : 0 to 14 PH x 0.01 PH. mV range : -1999 mV to 1999 mV.
Used the optional ORP probe to become a professional ORP meter.
Wide manual temperature compensation adjustment can be operated by push button on the front panel easily.
Calibration for pH 7, pH 4 and pH 10 by push button.
Temperature compensation of pH function can be done by optional ATC (Automatic Temperature Compensation) probe.
Auto shut off saves battery life.
Memorise Max./Min. reading with recall.
Data hold.
RS232 computer interface.
This PH Meter is not supplied with a pH Probe. Any pH Probe with a BNC connector can be used with this meter

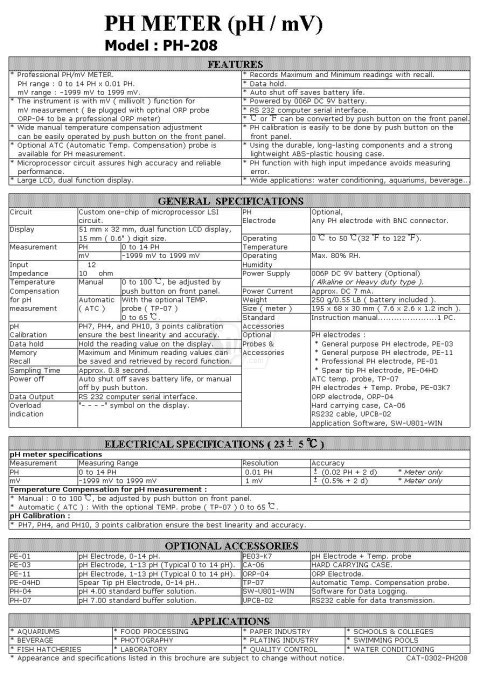

PH METER
Model : PH-208
* pH : 0 to 14.00 pH, 1999 mV.
* mV function for ORP electrode.
* Manual temperature compensation.
* ATC via optional Temp. probe (TP-07).
* Easy pH calibration procedures.
* RS232, Hold, Record (Max., Min.), oC/oF.
* Size : 195 x 68 x 30 mm.
* Professional PH/mV METER.
PH range : 0 to 14 PH x 0.01 PH.
mV range : -1999 mV to 1999 mV.
* Used the optional ORP probe to become a professional ORP meter.
*Wide manual temperature compensation adjustment can be
operated by push button on the front panel easily.
* Calibration for pH 7, pH 4 and pH 10 by push button.
* Temperature compensation of pH function can be done by optional
ATC (Automatic Temperature Compensation) probe.
* Auto shut off saves battery life.
* Memorize Max./Min. reading with recall.
* Data hold.
* RS232 computer interface.
* Records Maximum and Minimum readings with recall.
* Data hold.
* The instrument is with mV ( millivolt ) function for mV measurement
( Be plugged with optional ORP probe ORP-04 to be a professional ORP meter)
* Powered by 006P DC 9V battery.
* ℃ or ℉ can be converted by push button on the front panel.
* pH calibration is easily to be done by push button on the front panel
* Optional ATC (Automatic Temp. Compensation) probe is available for pH measurement.
* Using the durable, long-lasting components and a strong lightweight ABS-plastic housing case.
* Microprocessor circuit assures high accuracy and reliable performance.
* pH function with high input impedance avoids measuring error.
* Large LCD, dual function display. * Wide applications: water conditioning,
aquariums, beverage...
GENERAL SPECIFICATIONS
Display
51 mm x 32 mm, dual function LCD display, 15 mm ( 0.6" ) digit size.
Measurement
pH : 0 to 14 pH
mV : -1999 mV to 1999 mV
Input Impedance
10^12 ohm
Temperature Compensation for pH measurement
Manual : 0 to 100 ℃, be adjusted by push button on front panel.
Automatic (ATC) : With the optional TEMP. probe ( TP-07 ) 0 to 65 ℃.
pH Calibration
pH7, pH4, and pH10, 3 points calibration ensure the best linearity and accuracy.
Power off
Auto shut off saves battery life, or manual off by push button.
Data Output
RS 232 computer serial interface.
pH Temp. Compensation
build thermistor Temp. sensor for ( ATC )
Data Hold
Hold the reading value on the display.
Memory Recall
Maximum & Minimum value reading values can be saved and retrieved by record function.
Sampling Time
Approx. 0.8 second.
Overload indication
"- - - -" symbol on the display
pH Electrode
Optional, Any pH electrode with BNC connector.
Circuit
Custom one-chip of microprocessor LSI circuit.
Operating Temperature
0 ℃ to 50 ℃(32 ℉ to 122 ℉).
Operating Humidity
Max. 80% RH.
Power Supply
006P DC 9V battery (Optional) ( Alkaline or Heavy duty type ).
Power Current
Approx. DC 7 mA.
Size ( meter )
195 x 68 x 30 mm ( 7.6 x 2.6 x 1.2 inch ).
Weight
250 g/0.55 LB ( battery included ).
Power off
Auto power shut off to save battery life.
Standard Accessories
Instruction Manual............................. 1 PC
Optional Probes & Accessories
pH electrodes :
* General purpose pH electrode, PE-03.
* General purpose pH electrode, PE-11.
* Professional pH electrode, PE-01.
* Spear tip pH electrode, PE-06HD, PE-04HD.
* Glass body plane pH electrode, PE-08.
* Glass body professional pH electrode, PE-02.
ATC temp. probe, TP-07
pH electrodes + Temp. Probe, PE-03K7
ORP electrode, ORP-14
Hard carrying case, CA-06
RS232 cable, UPCB-02
USB cable, USB-01
Application Software, SW-U801-WIN
ELECTRICAL SPECIFICATIONS ( 23 ±5 ℃ )
pH meter specifications
Measurement
Measuring Range
Resolution
Accuracy
pH
0 to 14 pH
0.01 pH
± (0.02 pH + 2 d) * Meter only
mV
-1999 mV to 1999 mV
1 mV
± (0.5% + 2 d) * Meter only
Temperature Compensation for pH measurement :
* Manual : 0 to 100 ℃, be adjusted by push button on front panel.
* Automatic ( ATC ) : With the optional TEMP. probe ( TP-07 ) 0 to 65 ℃.
pH Calibration :
* pH7, pH4, and pH10, 3 points calibration ensure the best linearity and accuracy.
OPTIONAL ACCESSORIES
PE-01
pH Electrode, 0-14 pH.
pH-07
pH 7.00 standard buffer solution.
PE-03
pH Electrode, 1-13 pH (Typical 0 to 14 pH).
PE-03K7
pH Electrode + Temp. probe
PE-11
pH Electrode, 1-13 pH (Typical 0 to 14 pH).
CA-06
HARD CARRYING CASE.
PE-04HD
Spear Tip pH Electrode, 0-14 pH.
Penetration electrode for soil, meat, cheese...
ORP-14
ORP Electrode.
TP-07
Automatic Temp. Compensation probe.
PE-06HD
Spear Tip pH Electrode, 0-13 pH..
Penetration electrode for soil, meat, cheese...
SW-U801-WIN
Software for Data Logging.
UPCB-02
RS232 cable for data transmission.
PH-04
pH 4.00 standard buffer solution.
USB-01
USB cable for data transmission.
APPLICATIONS
* AQUARIUMS
* FOOD PROCESSING
* PAPER INDUSTRY
* SCHOOLS & COLLEGES
* BEVERAGE
* PHOTOGRAPHY
* PLATING INDUSTRY
* SWIMMING POOLS
* FISH HATCHERIES
* LABORATORY
* QUALITY CONTROL
* WATER CONDITIONING
