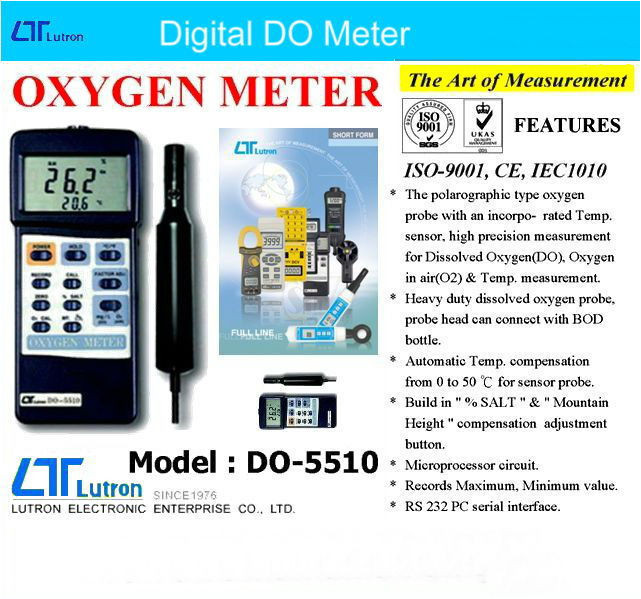

Dissolved Oxygen Meter Lutron Do 5510 :
Circuit: Custom One-Chip Of Microprocessor Lsi Circuit
Display: Dual Function Meter’ S Display, 13 Mm( 0.53 )
Super Large Lcd Display With Contrast Adjustment For Best Viewing Angle.
Measurement & Range:
– Dissolved Oxygen 0 To 20.0 Mg/ L( Liter)
– Oxygen In Air 0 To 100.0 %
– Temperature 0 To 50 , Automatic
Resolution:
– Dissolved Oxygen 0.1 Mg/ L
– Oxygen In Air 0.1 % O2
– Temperature 0.1
Accuracy ( 23 5 ) :
– Dissolved Oxygen 0.4 Mg/ L
– Oxygen In Air 0.7% O2
– Temperature 0.8 / 1.5 .
Sensor Structure:
The Polarographic Type Oxygen Probe With An Incorporated Temperature Sensor.
Probe Compensation & Adj.:
– Salt 0 To 39 % Salt
– Height( M. T.) 0 To 3900 Meter
Polarographic type probe serves for Disoloved Oxygen(DO), Ocygen in air(O2)Temp. measurement
Auto. Temp. compensation from 0 to 50°C for sensor
Auto shut off saves battery life
Microprocessor circuit assures high accuracy and provides special functions and features
Records Max., Min. and average readings
Features:
µP circuit, LCD with display unit annunciator.
DO, Oxygen in air, Temp., ATC, Auto Calibration, % salt, RS232/ USB.
Diaphragms & electrolyte included.
Probe head with diaphragm set and electrolyte are included.
Size : 180 x 72 x 32 mm. RS-232.
Pocket size
With m-Pcircuit
LCD with annunciator.
Max., Min, Memory recall button.
DO, Oxygen in air, Temperature, ATC, Auto calibration.
Lutron DO-5510A Dissolved Oxygen Meter- Economy Model
DO 5510, Lutron All in 1 Meter
Oxygen Meter, Temperature Meter, Salt Meter, RS232
* Temp. : 0 to 50C, C/ F.
