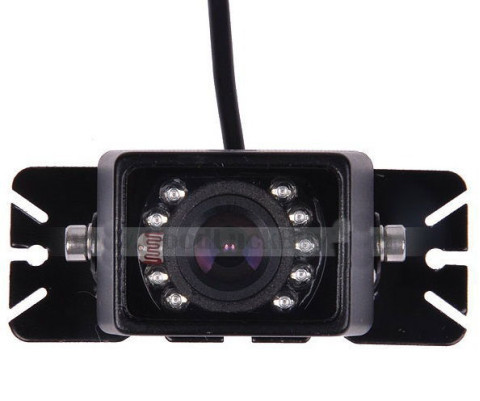

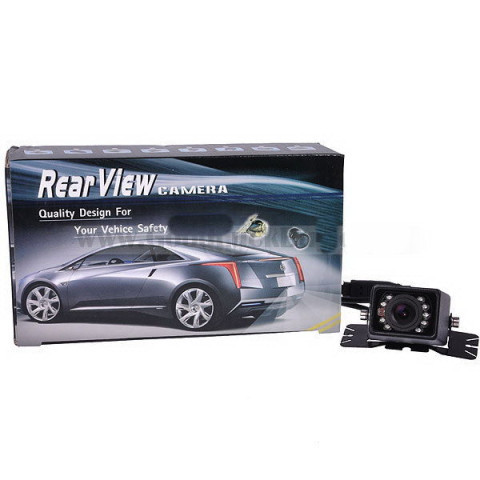

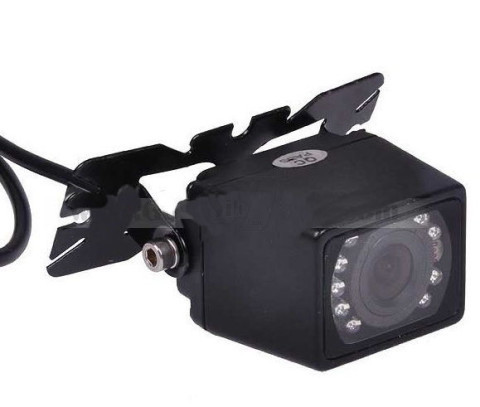

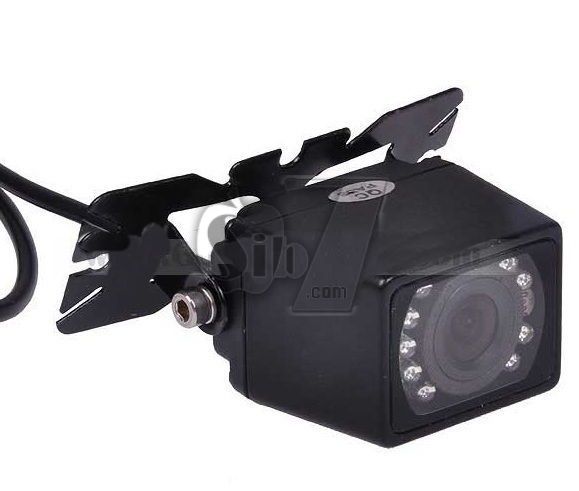

Professional exterior waterproof car rear view camera, easy to install and operate
- 1/4" color CMO
- 92°visible range
- 7 infrared night vision LED
- Perfectly solve the issue of bad car rear view effect
Installation:
Mount the camera at the back of the car (on the license plate,back window or other suitable place)

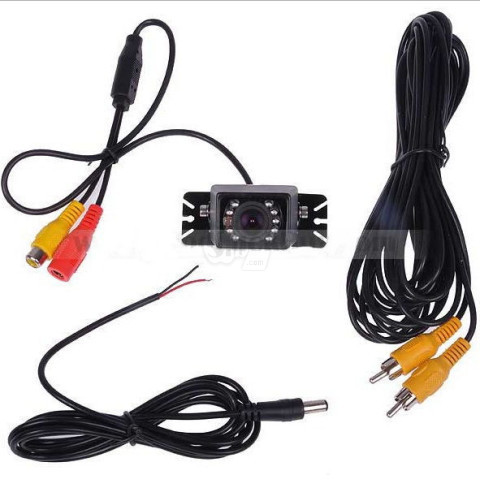

Connect the yellow video output connector to terminal display device
Connect the black power input connector to power output devic
Specifications:
Image device:
1/4" color CMOS
Effective pixels:
628 x 582 pixels
Sensing area:
5.78 x 4.19 mm
Sync. system:
internal
Minimum illumination:
3Lux/ F1.2
Lens Angle:
92°
Lens
3.6mm
S/N Ratio:
more than 48db
Electronic Shutter:
1/60-1/15,000 seconds
Video output:
RCA connector, 1.0Vp-p, 75ohm
Current Consumption:
90mA
Power supply:
DC 12V
Operating Temperature:
-20°C~ 70°C, RH95% Max.
Storage temperature:
-30°C ~ 60°C, RH95% Max.
Other items:
automatic white balance, AGC and BLC
