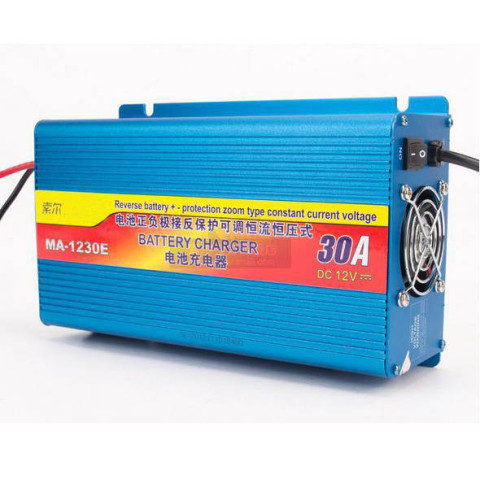

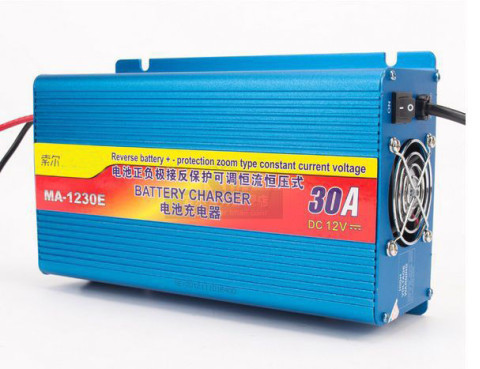

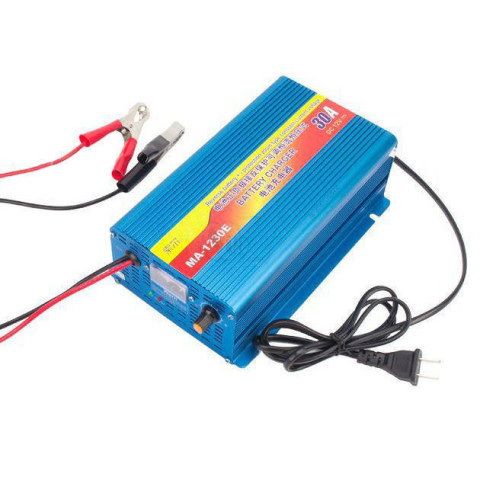

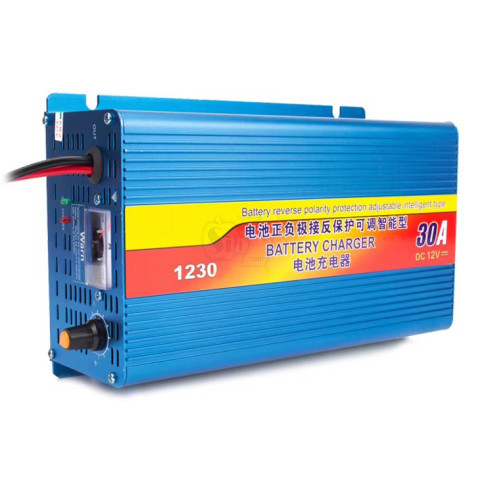

MAD-1230 Intelligent Car Battery Charger 3 stage ,220-240V to 12V

Write a review
Contact us for a price
32662
Out of stock

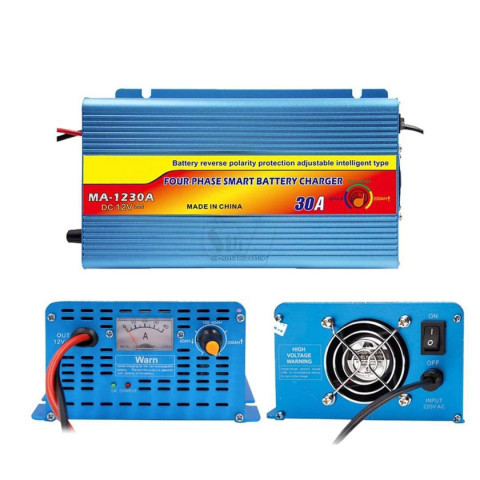

This MAD-1230A 12V 30A Car Intelligent Battery Charger is designed to provide quick charge for car battery.

Made of high-grade material, it is rather safe and reliable.

Featuring large charge capacity, high conversion efficiency and stable current output, it is equipped with over current protection, short circuit protection and reverse polarity protection, which ensure your safety.

It is easy to install and easy to use with simple wiring.

Bring one home, and then you can enjoy convenient and quick charge for your car.

It surely is your best choice! Come and get one!



Pre-charge mode: In order to protect the battery and extend its life, the battery’s internal resistance is too large or voltage is too low because the discharged time is too long or it is not used for a long time, the charger will supply low output current for the battery automatically. When voltage of the battery rises to the given voltage value, the charge mode will turn to constant current charge mode automatically.



Constant current mode: The charger supply constant charge current for the battery.



Constant voltage mode: Using the pulse width modulation(PWM) tech to control the charging current and output voltage of the charger which ensure the battery is fully charged and avoids over charging.



Floating charge mode: When the voltage of the battery is approaching the value of the constant voltage mode, and the current cut down to the given current gradually, that means the battery power is full, then the pilot lamp will turn green and the fan will stop working. The charger will turn the mode into floating charge mode automatically .At this moment, the battery can be stopped charging or keep on floating charge for half an hour.



Feature:

High performance and good stableness

Suitable for inverter battery for charging.

Direct Cigarette lighter connection

Smart and easy for carrying

Universal socket, suitable for all kinds of plugs

Made of high-grade material, safe and reliable

Easy to install and easy to use

High conversion efficiency and stable current output

three charging modes satisfy your specific needs

Designed to have large charge capacity

Long service life

Provide quick charge for car battery

Over current protection, short circuit protection and reverse polarity protection ensure your safety



Specification:

Model: MAD-1230

Input voltage: 220V-240V

Rated frequency: 47-63Hz

Full load efficiency: ≥ 91%

Charge current: 30A ± 5%

Charging Voltage : 14.5-14.8 V

No-Load Voltage : 13.8V

Output voltage: 12V

Charge mode: Three-steps

Certification : ISO9001: 2000, CTA, CE, RoHs



Package Includes

1 x 30A 12V Car Battery Charger
