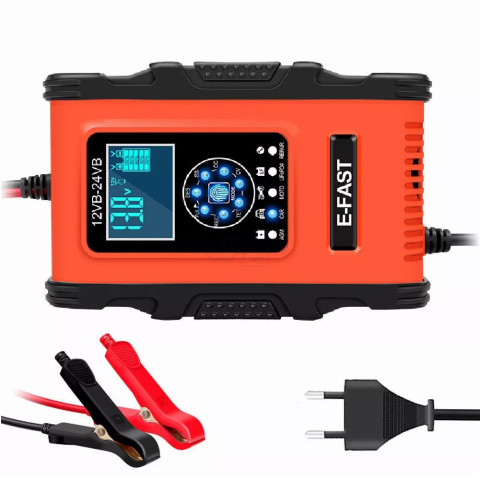

E-FAST TK500 7-stages Pulse Repair car battery charger 12V 12A 24V 6A Automatic Universal lead acid lifepo4 battery charger with Pulse Repair
This is a fully automatic battery charger
Automatic charging protects your battery from being overcharged.
So you can leave the charger connected to the battery indefinitely.
Smart chargers are suitable for most battery types including Calcium, Gel AGM, Wet, lead Acid batteries.
They may also help restore drained and sulphated batteries.
Types of batteries: Most types of lead acid batteries including Gel AGM, Wet, lead Acid,etc..
FEATURES:
High efficiency (>85%).
AGM, Car, Motorcycle Battery type can selectable

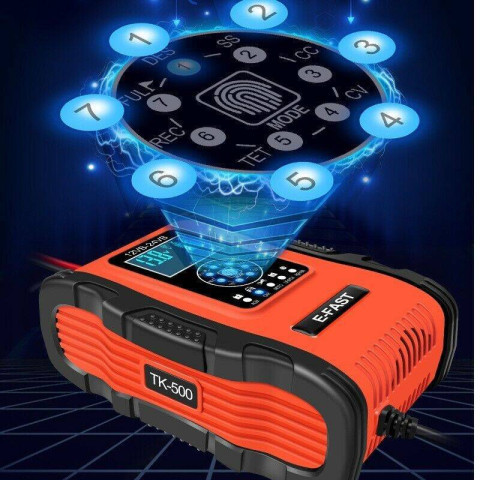

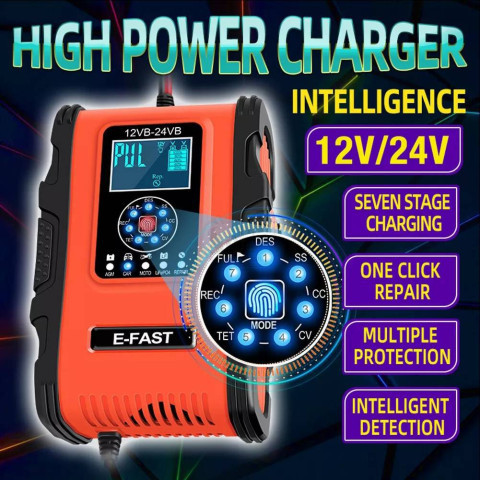

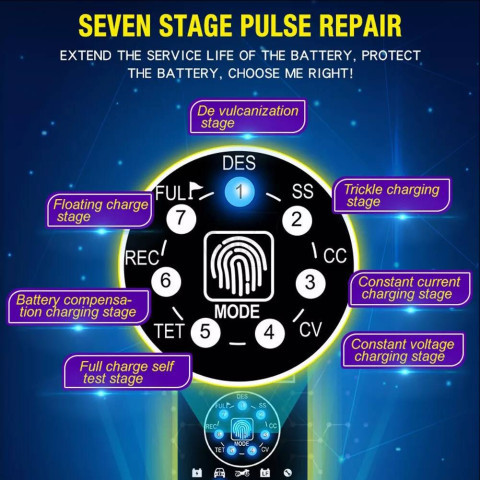

The 7-stage microprocessor controlled charging process
provides the best possible application and enables efficient battery charging.

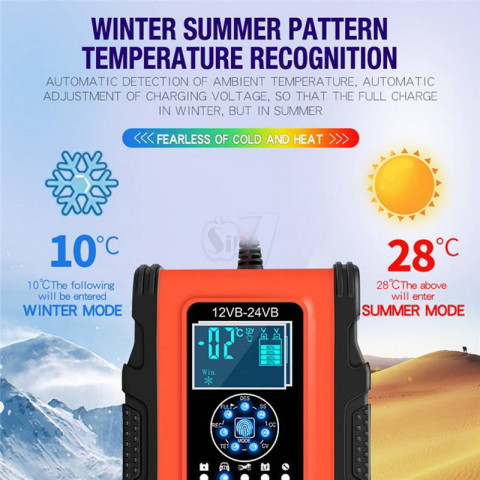

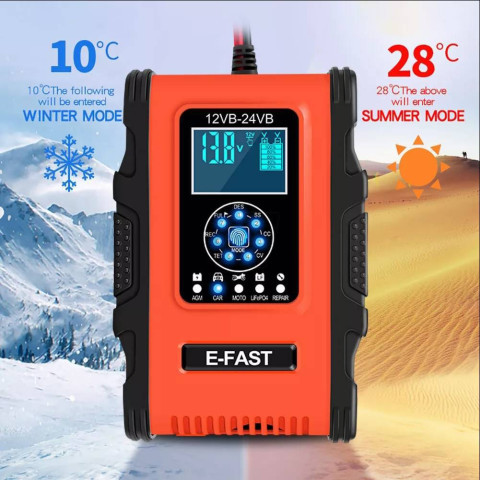

Charging voltage adapts to temperature, that can prevent over- or undercharging of battery.

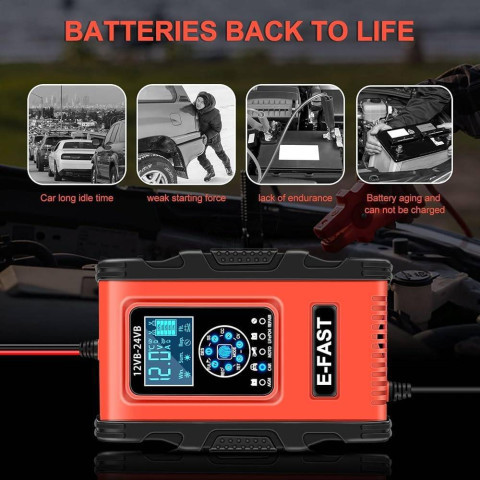

Capable of recharging severely discharged or heavily sulfated battery.
Reverse polarity protection, short circuit protection, over-charge protections,
parks free contact.

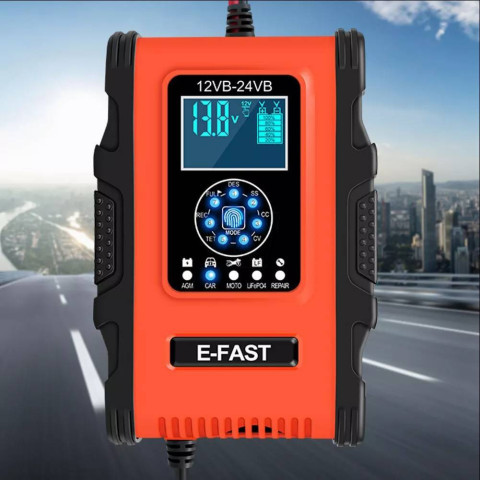

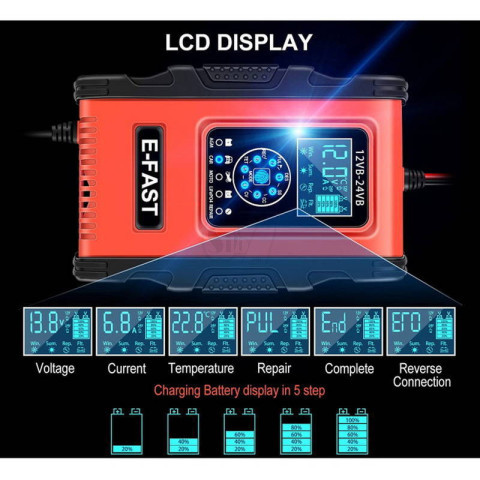

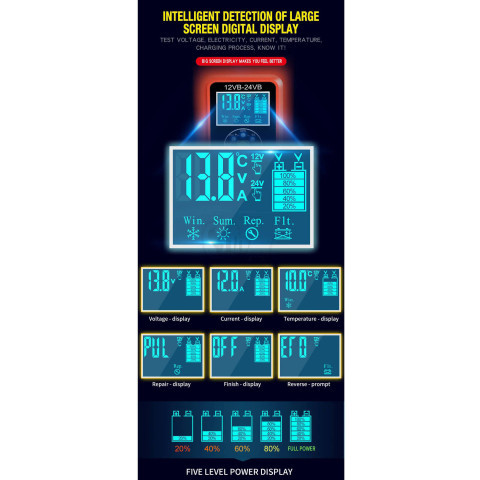

LED display: voltage, current, temperature etc.
Ease of use. Clear charging status display.
Full microprocessor controlled.
Do not over-charge your battery even it is kept connecting in any mode.
Switch mode technology
Polarity protection
Output short protection
Non battery link protection
Over voltage protection
Over temperature protection
Cooling Fan

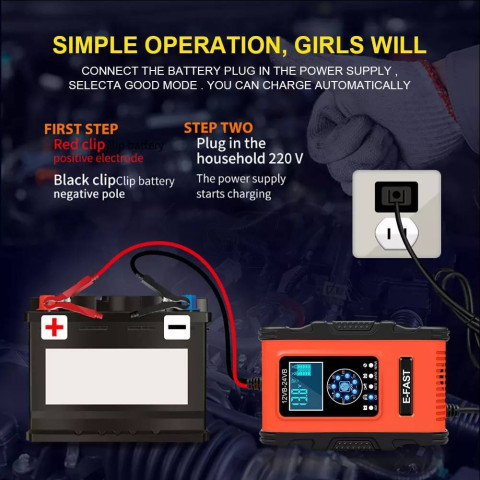

Before use pls confirm it is dry or wet battery for your 12V/24V car battery and switch on correct button.

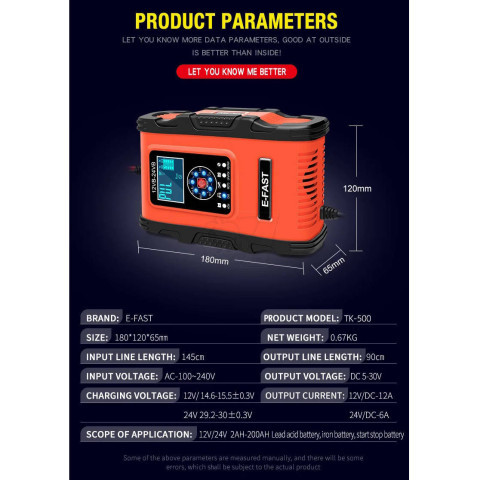

Specifications:
Model Number: 122412Z or TK-500

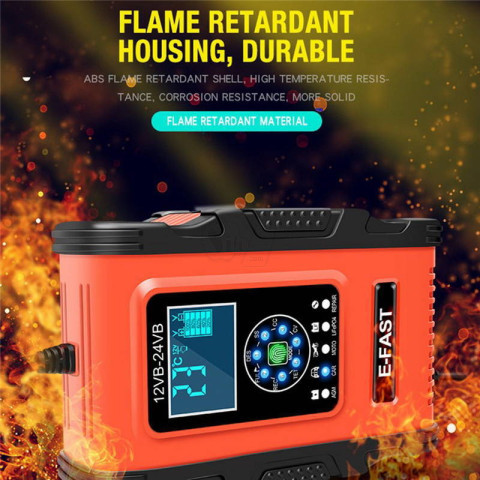

Material: PC Fireproof Material, ABS
Function: 12v 24v Pulse Repair Lead acid Battery Charger
Maximum Output Power: 120w
Use: 12V and 24V lead acid battery
Protection: Short Circuit Protection, ovp, OTP, OLP, ocp, Over-charging, Overcurrent, Overvoltage
Private Mold: Yes
Input voltage and current: 100-240V/0.9A
Max output voltage and current:
14.7V Float charge voltage:13.8V (for 12V lead acid battery)
29.4V Float charge voltage:27.6V (for 24V lead acid battery)
14.6V (for 4S lifepo4 battery)
29.2V (for 8S lifepo4 battery)
Rated output: 12V10A, 24V5A max.
Use: 12V and 24V lifepo4 lead acid battery
Thermal protect: 65'C+/-5'C
Efficiency: App. 85%.
Compliant standards: CE, IEC60335, EN61000, EN55014
Battery range: 6-200Ah

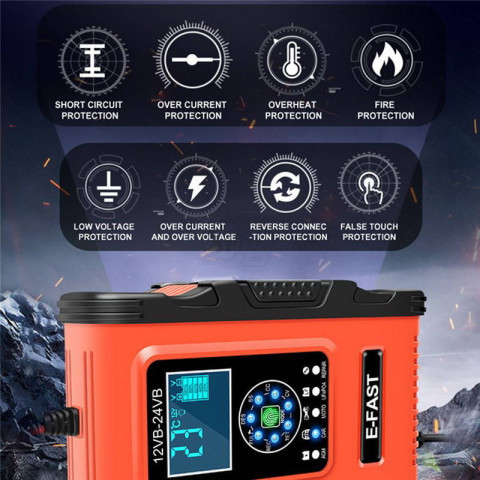

Protection:
-Short circuit protection
-Low-voltage protection
-Overvoltage protection
-Overcurrent protection
-Overheating protection
-Smart security protection
-Overall earthquake resistance
-Overcharge and over discharge protection
-Reverse connection protection
-Overshoot over discharge protection
Apply to: Children's toy cars, motorcycles, cars, etc.
Packaging and delivery
Dimension (L×W×H): 24.5*14*7.5cm
Single package size: 20X15X12 cm
Weight: 750g
Package Includes:
1x 12V 24V 12A Battery Charger
User Manual
Packing box
